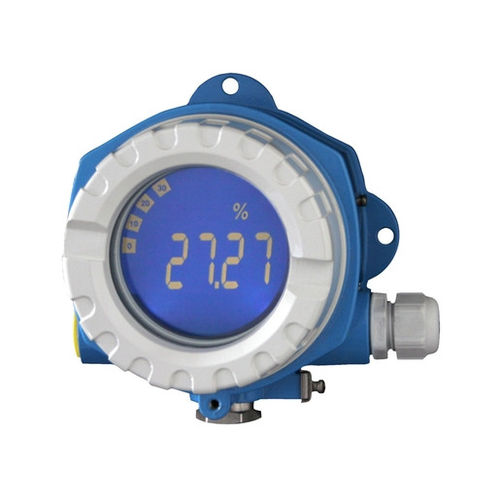

Fieldbus indicator RIA14

digital4-20 mAcompact

The indicator shows the measured signal on the large, backlit display. An additional bar graph gives a quick process overview and a plain text field displays further information like the engineering unit or TAG. Limit value infringements are also signalized and an open collector can be switched. No separate power supply is required, the indicator is powered directly from the 4...20 mA loop. The housing is available in aluminum and in stainless steel as well as with an optional Ex d approval. Microcontroller controlled display unit in single chamber field housing with illuminated LC display. The measuring range, decimal point and offset of the display can be configured comfortably by means of three keys in the device with the housing open or by means of a PC with the FieldCare PC software. Benefits Display of 4 to 20 mA measured values 5-digit measured value display with dimension, bar graph and backlight No external power supply required Versions: Die-cast aluminum housing or stainless steel housing Easy 3-key operation; or configuration with FieldCare PC software; or configuration without power supply using setup box International approvals; marine approval Allows the HART® transmission protocol to pass unimpeded Fundamental selection Simple products Easy to select, install and operate
