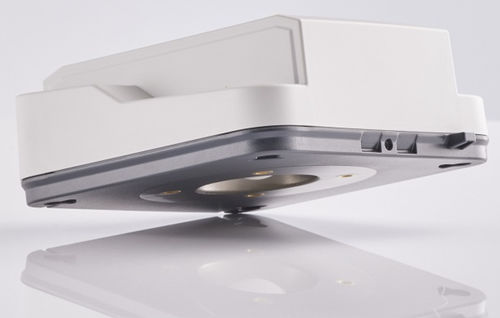

FMCW radar level sensor UTR30

for solidsfor liquidsdigital output

Overview
The UTR30 radar module provides continuous, non-contact level and distance measurement for tanks, silos and open-water applications. Measurement is based on the Time-of-Flight (ToF) principle and is suitable for ranges up to 35 m. The module is available as a bare sensor or as a customer-configured unit with defined electrical and process interfaces.

Benefits

• Accurate ToF measurement
  Continuous, contactless measurement using time-of-flight enables precise distance readings up to 35 m. Radar operation remains reliable under movement, rapid temperature changes and harsh environmental conditions.
• Flexible parameterization
  Sensor parameters can be adapted to application needs. Configure medium type (solid/liquid), sensitivity (low/medium/high), empty/full thresholds and block distance.
• Application-specific configuration
  Housing, electrical connection, process connection and communication interfaces can be customized to project requirements.

Technical data

• Measurement distance: 0–35 m
• Accuracy: ±2 mm (liquids), ±10 mm (solids)
• Beam angle: 8°
• Operating temperature: -40 °C … 85 °C
• Medium: Solids & liquids with DK > 1.9
• Supply: Digital 1.8 … 3.3 V (MCU); Analog 3.5 … 5.5 V (RF)
• Output: Digital UART (8N1 inverted, 230 kBaud), RS422 (M12 plug)
• Parametrization options:
  • Medium type (Solid/Fluid)
  • Empty/Full
  • Block distance
  • Sensitivity

Technology

• Time-of-Flight (ToF)
• Radar: FMCW, 80 GHz

Application-specific configuration

• Housing design
• Electrical connection (M12, pin header, etc.)
• Process connection (G1 1/2, MNPT 1/2″)
• Selectable communication interfaces

Safety and compliance

• Radio approval: ETSI EN 302 729 compliant
• Module-level radio approvals (FCC, ISED) available
• RoHS / REACH compliant

Further information
Technical information (TI) and a brochure are available as PDF documents with detailed product and configuration data.

Technical specifications

• Model: UTR30
• Measurement principle: Time-of-Flight (ToF)
• Frequency/technology: FMCW, 80 GHz
• Measurement range: 0–35 m
• Accuracy: ±2 mm (liquids) / ±10 mm (solids)
• Beam angle: 8°
• Operating temperature: -40 °C … 85 °C
• Supply voltage: Digital 1.8 … 3.3 V; Analog 3.5 … 5.5 V
• Interfaces: UART (inverted, 230 kBaud), RS422 (M12)
• Medium: Solids & liquids (DK > 1.9)
