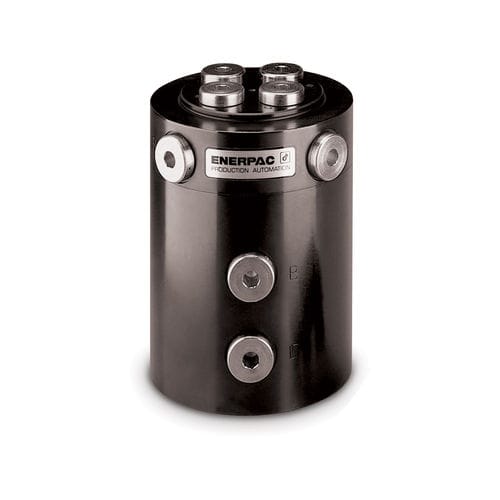

Oil rotary union CR, CRV series
4-passagehydraulicradial

oil rotary union
oil rotary union
oil rotary union
Add to favorites
Compare this product


Characteristics

Medium
for oil
Number of passages
4-passage
Applications
hydraulic
Other characteristics
radial, high-speed
Pressure

Min.: 100 bar (1,450 psi)

Max.: 350 bar (5,076 psi)

Rotational speed

Min.: 30 rpm (188 rad.min-1)

Max.: 100 rpm (628 rad.min-1)

Description

Description Series : CRV Product Lines : Workholding Tools •Enerpac rotary unions provide a permanent hydraulic connection on indexing and rotating work stations •High rotation per minute •Low starting torque •Internal oil bearings for increased lifetime •Manifold mounting adaptors available to reduce fixture plumbing •Optional manifold mounting adapter (AMP-series) mounts onto end of 2 and 4-passage rotary unions. Allows O-ring directly to fixture. Order AMP2 for CRV222, AMP4 for CRV442 Description Series : CR Product Lines : Workholding Tools •Enerpac rotary unions provide a permanent hydraulic connection on indexing and rotating work stations •High rotation per minute •Low starting torque •Internal oil bearings for increased lifetime •Manifold mounting adaptors available to reduce fixture plumbing
