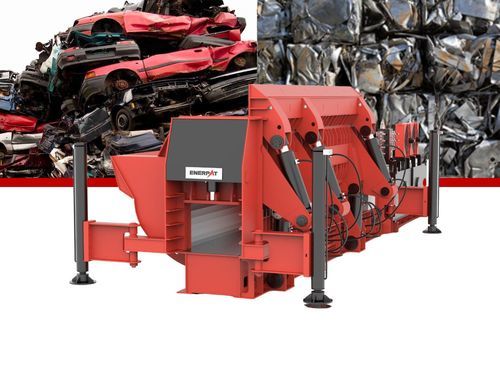

Car baler AMB-SC

for metalshorizontalautomatic

Overview:

This mobile hydraulic baler/crusher AMB-SC is designed to compress end-of-life vehicle bodies and lightweight scrap steel/aluminum into high-density bales using cold-press technology. Available in mobile and fixed configurations to fit different operational sites and transport constraints.

Performance & Benefits:

• High bale densities: 1000–1300 kg/m³ for ferrous materials (page ranges 900–1200/1000–1300) and 500–600 kg/m³ for aluminum.
• Cycle time: ≤100 seconds to increase throughput and reduce handling time.
• Processing capacity (field examples): up to 15.6 t/h for ferrous scrap and 7.8 t/h for aluminum.
• Compact, mobile-ready design: folding hydraulic legs and ultra-narrow 2,540 mm body for quick deployment and transport; dimensions compatible with special container arrangements.
• Operator ergonomics: rotating cab and one-button steel grabber for simplified loading and control.
• Reduced logistics and labour: documented case examples show significant transport and handling savings.

Design & Safety Features:

• Dual-stage clamshell linkage and extended compression chamber for consistent bale density (density error ≤5%).
• Hopper lined with Hardox450 wear plates and Q690D steel inner cavity for improved wear and impact resistance.
• High-pressure, low-leak hydraulic system (Rexroth valve group + Hallite seals) rated to ~35 MPa with automatic pressure relief and Siemens PLC-linked emergency stop.
• Touchscreen control (Schneider) for one-button programming, visualization of current/temperature/cycle data and sub-second fault response.
• Engine and acoustic options: Cummins engines available to meet Euro 5/T4F emissions; soundproof cabin operation ≤75 dB (as reported).

Customer Pain Points & Solutions:

• Large scrap volumes: compressed bales (example bale 850×650×250 mm) reduce storage by over 60%.
• Oversized items (SUVs, tall parts): manual shaping mode with dual gabled hydraulic cylinders (180 t shaping) to pre-compress material before automatic baling; single-load guidance (max ≈1200 kg) to prevent overload.
• Mobility and installation: folding supports, hydraulic lift and reduced transport dimensions (width 2,540 mm; cabin height reducible to 2,670 mm) for site access and shipping.
• Component wear: Hardox450 lining, heat-treated hydraulic components and 40Cr axles; recommended regular lubrication and maintenance.

Fact Verification & Use Cases:

• Measured examples: 15.6 t/h for ferrous scrap (example powered by a 96 kW Cummins unit); aluminum up to 7.8 t/h.
• Compliance: reported Euro 5/T4F engine compliance and CE/OSHA level electrical and safety components.

Technical specifications:

• Model: AMB-SC
• Pushing pressure: 150 t
• Press chamber size: 5250 × 1800 × 940 mm
• Motor power: 110 kW
• Bale size: 850 × 650 mm
• Cycle time: ≤100 s
• Iron/ferrous briquette density: 900–1300 kg/m³
• Aluminum briquette density: 500–600 kg/m³
• Machine length: 12,350 mm
• Machine weight: 30 t
• Typical throughput (examples): up to 15.6 t/h (ferrous), 7.8 t/h (aluminum)
