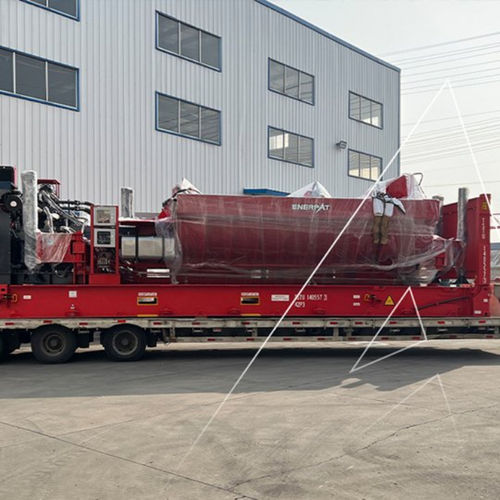

Metal baler machine AMB-SCE5000

for scrap metalfor vehiclesfor car

Overview
ENERPAT AMB-SCE5000 and AMB-SC5250 compress end-of-life vehicles (ELVs), scrap car bodies and mixed ferrous/non-ferrous metal into dense, stackable bales to reduce storage footprint and transport costs. The range covers a fixed-yard baler for whole-body processing and a transportable diesel-powered logger/baler for on-site operations.

Models

• AMB-SCE5000 — fixed-yard ELV car baler with large inlet and front-eject bale system for whole vehicle bodies.
• AMB-SC5250 — mobile ELV logger baler with integrated grapple/loading system, diesel-hydraulic power and extended compression chamber for on-site processing.

Key selling points

• Specifically designed for vehicle recycling (ELVs) and mixed scrap metal.
• Finished bale size ~850 × 650 mm for optimized stacking and transport.
• Available as stationary (fixed-yard) and mobile (on-site) configurations to match site logistics.
• High pushing/main force up to 150 t and heavy-duty hydraulic components for continuous operation.
• Service support, spare parts and operator guidance available to support lifecycle operation.

Features highlighted on the page

• Large compression chambers (SCE5000 inlet 5001×1999 mm; SC5250 chamber 5250×1800×940 mm).
• Front-eject bale design on SCE5000 to speed handling and reduce manual intervention.
• SC5250 mobile unit with integrated grapple/gripper and diesel hydraulic unit for off-grid use.
• Wear-resistant Hardox plates and robust structural design for scrap yard environments.
• Dense, uniform bales for efficient stacking, loading and transport logistics.

Applications

• Vehicle recycling centres and ELV processing plants.
• Auto dismantling yards (post-depollution shell compaction).
• Mobile recycling contractors and field processing across multiple locations.

Spec sheets (summary)

• AMB-SCE5000 — Model: AMB-SCE5000; Main cylinder bore/rod/stroke: 279/201/5451 mm; Main force: 150 t; Press cylinders (levels): 80 t each; Lifting door cylinder: 40 t; Bale size (W×H): 851 × 650 mm; Press box inlet (L×W): 5001 × 1999 mm; Overall (L×W×H): 13266 × 2499 × 2520 mm; Diesel motor: Cummins QSB6.7-C160-31 160 HP; Oil pumps: A4VS0180L + A4VS0180L + CBT-F40 + CB40; Cycle time ≈125 s.
• AMB-SC5250 — Model: AMB-SC5250; Pushing pressure: 150 t; Press chamber: 5250 × 1800 × 940 mm; Motor power: 110 kW; Bale size: 850 × 650 mm; Cycle time ≤100 s; Iron briquette density: 900–1200 kg/m³; Aluminum briquette density: 500–600 kg/m³; Machine length: 12350 mm; Machine weight: ~30 t.

Notes

• SCE5000 is positioned for high-capacity fixed-yard ELV processing and whole-body baling to minimize storage and transport volume.
• SC5250 is positioned as a transportable, diesel-powered logger baler with an extra-long chamber and integrated loading/grapple for on-site crushing and baling.

Technical specifications

• Compression chamber examples: 5001×1999 mm inlet (SCE5000); 5250×1800×940 mm (SC5250).
• Pushing/main force: up to 150 t.
• Bale size: approx. 850 × 650 mm (finished bale).
• Diesel power: Cummins QSB6.7 160 HP on SCE5000; SC5250 uses diesel-hydraulic unit for off-grid operation.
• Cycle times: SCE5000 ≈125 s; SC5250 ≤100 s.
• Machine dimensions & weights: SCE5000 overall 13266×2499×2520 mm; SC5250 length ~12350 mm; SC5250 mass ~30 t.
• Briquette densities (SC5250 examples): iron 900–1200 kg/m³; aluminum 500–600 kg/m³.
