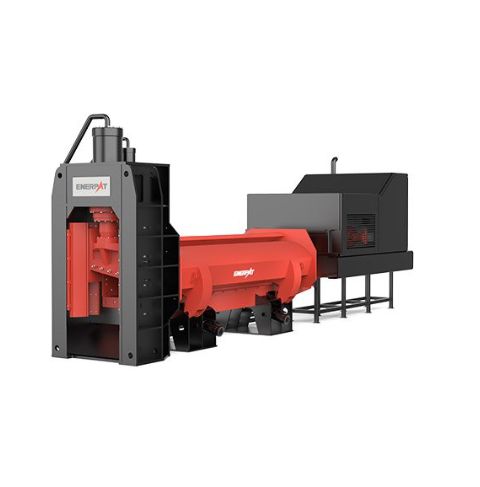

Electric shear EMS-BS series

for scrap metalfor metalhigh-productivity

Description
Compact, continuous-duty shear baler from Enerpat engineered to cut and compact heavy scrap and metallic materials. Designed for high-throughput operations and harsh environments with selectable cutting modes and optional pre-loading hopper to improve feed efficiency.

Advantages

• High shear capacity and stable operation: maximum cutting force up to 1,040 t, providing reserve capacity for high-resistance conditions.
• Faster loading and increased throughput: optional pre-loading hopper accelerates compression loading for improved continuous feeding.
• Enhanced operational management: configurable Industry 4.0 systems for greater transparency and production-line control.
• Flexible operating conditions: diesel/electric dual-mode operation enables production during power outages.
• Selectable cutting modes: adapts to various materials, ensuring fast, clean cuts and minimal cycle times.

Available equipment / Models

• EMS-BS6360
• EMS-BS8060
• EMS-BS8070
• EMS-BS80701
• EMS-BS10060
• EMS-BS10070

Why choose the Enerpat Shear Baler
Built for demanding environments: replaceable wear plates on critical contact surfaces, intelligent electrical system with Siemens/Schneider PLC, four-side replaceable high-strength blades and design optimizations to minimize wear and downtime.

Technical specifications (table)
Model | EMS-BS6360 | EMS-BS8060 | EMS-BS8070 | EMS-BS80701 | EMS-BS10060 | EMS-BS10070
Cutting Force (t) | 610 | 820 | 820 | 820 | 1,040 | 1,040
Piston Force (t) | 160 | 160 | 160 | 195 | 160 | 160
Blade Width (mm) | 890 | 930 | 1,000 | 1,000 | 930 | 1,000
Wing Force (t) (each wing, all cylinders) | 250 | 250 | 310 | 310 | 250 | 310
Pusher Force (t) (cutting) | 125 | 120 | 120 | 120 | 120 | 120
Drive Power (kW) | 2×90; 1×235 (di) | 2×110 | 2×132 | 1×345; 3×132 | 2×132 | 2×132
Capacity, up to* (t/h) | 15 | 20 | 25 | 35 | 25 | 30
Loading Box (L×W×H) (mm) | 6,000 x 2,580 x 1,100 | 6,000 x 2,600 x 1,100 | 7,000 x 3,000 x 1,200 | 7,000 x 3,000 x 1,200 | 6,000 x 2,600 x 1,100 | 7,000 x 3,000 x 1,200
Closed Loading Box (W×H) (mm) | 800×600 | 800×600 | 900×700 | 900×700 | 800×600 | 900×700
Machine Length (mm) | 15,500 | 15,800 | 17,900 | 18,900 | 15,800 | 17,900
Machine Width (mm) | 3,700 | 4,290 | 4,390 | 4,390 | 4,290 | 4,390
Machine Height (mm) | 5,050 | 4,270 | 4,760 | 4,760 | 4,270 | 4,760
Machine Weight (t) | 8,182 | 88 | 117 / 119 | 100 | 93 | 128

Features / technical data

• Brand: Enerpat.
• Series / Model: EMS-BS series (models: EMS-BS6360, EMS-BS8060, EMS-BS8070, EMS-BS80701, EMS-BS10060, EMS-BS10070).
• Maximum cutting force by model: up to 1,040 t.
• Drive power: variants per model (e.g. 2×90; 1×235 (di), 2×110, 2×132, 1×345 + 3×132).
• Rated capacity up to 35 t/h (depending on model).
• Blade width between 890 and 1,000 mm depending on model; high-strength German blades, four-side replaceable.
• Loading box and closed loading box: model-specific dimensions (see table).
• Electrical systems: Siemens/Schneider PLC with smart programming.
• Design and maintenance: bolted replaceable wear plates, low-friction guides, forged cutting table and optimized mechanism to minimize wear.
• Safety and control: wear-free linear sensors in cylinders and laser protection sensors on the pusher cylinder for precise feed control and line protection.
