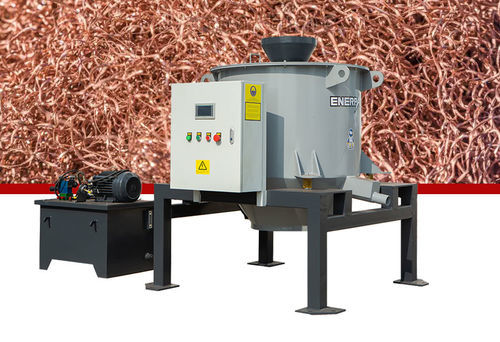

Metal chip centrifuge ED series

chipde-oilingfloor-standing

Product overview
Oily metal waste such as copper turnings, chips and fines reduces recyclate value and increases disposal costs. The ENERPAT Industrial Centrifuge (ED series: ED-400, ED-600, ED-800) uses centrifugal separation (up to 1,500 RPM) to remove oil from metal chips, achieving over 97% dryness and transforming low-value scrap into higher-value recyclable material.

Key performance highlights

• Net oil removal rate: 3–5% residual oil (validated by SGS/TÜV).
• Throughput: 400–800 kg/hour depending on model.
• Automation: PLC with touchscreen, consistent cycle time 15–30 minutes.
• Certifications: CE, ISO 9001, ATEX for explosive atmospheres.

Industries at risk

• Automotive suppliers, rail, mold-making, valve production, electronics and manufacturers producing oily metal swarf.
• Poor handling leads to lower recyclate value, higher disposal costs and environmental compliance risks.

Why ENERPAT’s Industrial Centrifuge stands out

• Wedge-wire de-oiling screen: stainless steel design resists clogging and offers ~20% higher throughput versus perforated drums.
• Hydraulic unloading system: copes with tangled turnings and mixed scrap without efficiency loss.

Smart vibration control

• Anti-resonance mounts reduce transmitted vibration and noise (noise reduction ~40%).
• Auto-adjust sensors detect imbalance and reduce speed to protect the machine.

Client results & examples

• German automotive supplier cut oil disposal costs by 60% after installing an ED-600.
• Thai electronics manufacturer recovered 12 tonnes of clean copper per month, increasing revenue by about $18,000.
• User report: "Our ED-800 processes mixed scrap from CNC lathes and drills continuously; oil recovery paid for the machine in 8 months."

Specification sheet (summary)
Model | ED-400 | ED-600 | ED-800
Chamber Diameter (mm) | φ400 | φ600 | φ800
Oil Content Rate | 3%–5% | 3%–5% | 3%–5%
Motor Power (kW) | 4 | 5.5 | 7.5
Maximum Speed (r/min) | 1200 | 1200 | 1200
Material Size (mm) | 3–50 | 3–50 | 3–50
Machine Size (mm) | 1600×1400×1600 | 2000×1400×1700 | 2600×1800×1900

Material applications
Designed for de-oiling metal shavings and swarf such as copper, iron and aluminum chips. Typically integrated in metal chip briquetting or recycling lines.

Technical specifications

• Model series: ED series
• Brand: ENERPAT
• Net oil removal rate: 3–5% residual oil
• Throughput: 400–800 kg/hour
• Chamber diameters: φ400 / φ600 / φ800
• Motor power: 4 / 5.5 / 7.5 kW
• Maximum speed: up to 1,200 r/min
• Material size accepted: 3–50 mm
• Machine footprint: 1600×1400×1600 to 2600×1800×1900 mm
• Construction: stainless steel wedge-wire basket, hydraulic discharge plate, oil collection tank with automatic flushing
• Controls: PLC with touchscreen, auto vibration/imbalance protection
• Vibration isolation: anti-resonance mounts, imbalance sensor with automatic RPM reduction
• Certifications: CE, ISO 9001, ATEX
• Typical cycle: 15–30 minutes per batch
