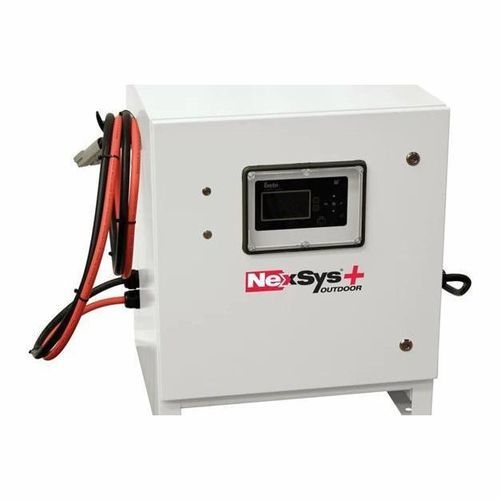

Forklift truck battery charger NexSys®+ Outdoor

desktopsmartautomatic

Summary
ADVANCED CHARGING FOR OUTDOOR EQUIPMENT
Designed to withstand water and dust, the NexSys®+ Outdoor Charger brings advanced NexSys®+ charging performance to your outdoor equipment — with high charge rates that significantly reduce recharge times and increase fleet productivity.

Details
Rugged outside, intelligent inside. This Outdoor version is housed in a weatherproof enclosure protecting against dirt, water and seasonal temperatures. NexSys®+ Outdoor Chargers are ideal for charging at airports, material yards, agricultural sites, freight terminals, ports and other weather-exposed environments.

Main benefits

• NEMA 3R / IP54 enclosure protecting against outdoor elements (not submersible)
• Charge efficiency up to 94% for maximum performance and energy savings
• Automatic internal temperature regulation for consistent performance
• Compatible with major battery technologies

Table: Main specifications
Application: Forklifts and pallet trucks; Automated guided vehicles (AGV); Floor-care/cleaning machines; Ground support equipment
Output power kW (min.): 2 kW
Output power kW (max.): 21 kW
Voltage (min): 24 V
Voltage (max): 96 V
Communication functions: CAN bus; Ethernet; RS-485; Wi‑Fi

Features / technical specifications

• Enclosure: NEMA 3R / IP54 (protected against dust and water spray; designed for typical weather conditions — not for immersion)
• Charge efficiency: up to 94%
• Thermal management: automatic control of internal temperature to maintain performance
• Power range: 2 kW (min.) — 21 kW (max.)
• Voltage range: 24 V (min.) — 96 V (max.)
• Compatibility: compatible with major battery technologies (multiple chemistries)
• Communication functions: CAN bus, Ethernet, RS-485, Wi‑Fi
• Recommended operating environments: airports, material yards, agriculture, freight terminals, ports and other outdoor sites exposed to weather
