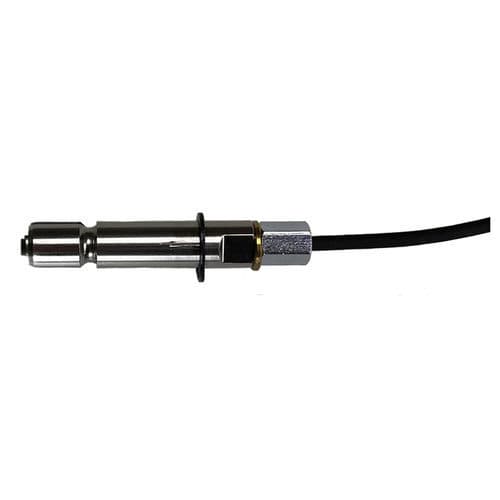

Strain gauge transducer QMS

ModbusRS-4854-20 mA

This device is used to measure strains in tunnel linings, steel struts and reinforcing bars of piles, columns, walls and the like. The transverse measuring sensor QMS is a transducer based on strain gauge depths for placement in bores for indirect force measurement in structures of machines, tools and systems. The front part of the sensor is force-sensitive in the transverse direction. The sensor requires a 10 mm diameter hole for mounting. The integrated clamping device allows the sensor to be pre-tensioned in the mounting hole. Both tensile and compressive forces of the structure can be recorded in any direction. The measuring chain must be calibrated by comparative measurements after installation Applications Industrial monitoring of machine forces Tool monitoring Monitoring of column forces in steel construction Monitoring of sick staff Features Indirect force measurement in all steel structures Can measure compressive and tensile forces thanks to preload No expensive special tools required for assembly and disassembly Can be fixed at any depth and in any direction in the mounting hole Available with various output signals and amplifiers Possible output signals mV/V -10 to +10 V iOLink LVDS Second selectable amplification level The amplification can be changed by an adjustable factor via the software or a digital pin. This means that measurements with input signals of very different levels can also be carried out with a high resolution. The amplification can be adjusted by a factor of 1 to 100.
