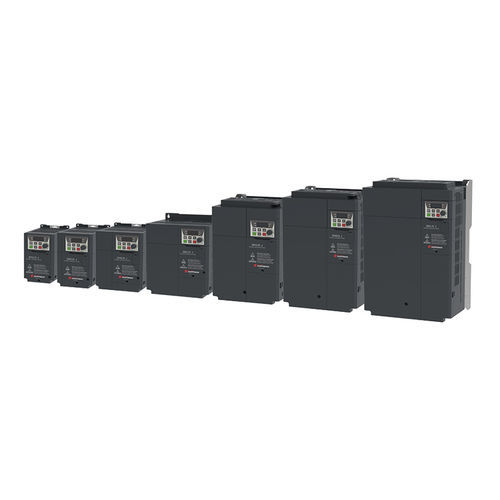

High-performance AC drive SINUS J

three-phasesingle-phaseasynchronous

Multi-purpose, high-performance compact drive for three-phase asynchronous motors. Main features – 4 digit 7-segment / 6 key buttons + Built-in potentiometer – Optional Remote Keypad – Smart Copier device for parameters and firmware download/upload with switched-off drive – Conduit Kit for cable entry, NEMA1 protection – Optional field bus cards: CANopen, Ethernet/IP, Modbus TCP, Profibus-DP – Input/output three-phase inductors – Braking resistor – Toroidal output filters A general-purpose product featuring advanced performance – Protection degree IP20 – Side-by Side installation (Zero Stack) – Integrated braking module on all models – Overload up to 120% for 60 s (Normal Duty) – Overload up to 150% for 60 s (Heavy Duty) – Operating temperature without derating: -10 °C up to 50 °C, depending on overload type – Integrated RS485 serial port, MODBUS RTU communication protocol – Integrated A2 EMC filter for 4T models – Standard compliance CE, UL, UKCA, RoHS Advanced performance – Integrated control methods: V/F, Sensorless Vector Control – Lifetime Detection (fans) – Selectable motor auto-tuning: standstill or moving – Compatible with “REMOTE DRIVE” software for remote control
