Air blower TS,R series

single-stageconveyingfor water

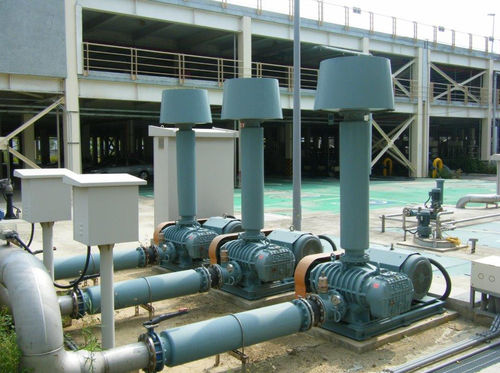

air roots blower positive displacement blower Spec Type:Roots air roots blower:air positive displacement blower Key Features Working Principles: Roots Blowers compress air by two rotors rotate in opposite directions. The tiny clearance between the rotors and between each rotor and housing wall amounts to approx. No contact between the rotors so the rotors can make high speed operation and offer the high capacity. By the way, it do not need add lubricating oil between rotors so it can transport clean and none oil moist air Roots blower: outlet: 1``-20``, pressure: 1000-20000mmAq, air flow: 0.1-490 m3/min Roots blower: stable air flow,, less pressure change Roots blower: simple construction, free from trouble Submersible roots blower: pressure: 1000-60000mmAq, air flow: 0.1-490m3/min Submersible roots blower: no noise, no soundproofing devices Submersible roots blower: sturdy structure to ensure durability (,) , Applications: 1﹒Pneumatic Conveying 2﹒Sewage Treatment 3﹒Conveying of Gas 4. Water Aeration 5﹒Blending ＆ Mixing 6﹒Agitating of Chemical Liquids 7﹒Supply of Combustion Air 8﹒Scavenging 9﹒Drying 10﹒Used as Vacuum Pumps
