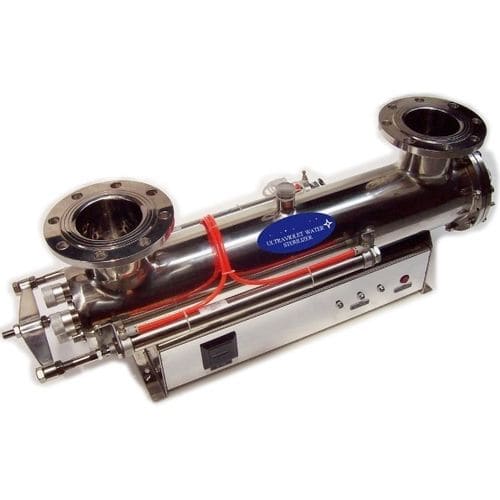

UV disinfection unit for wastewater with sleeve wiper
UV disinfection system with quartz sleeve wiper cleaning device
It adopts the latest lamp technology and combines the traditional pipeline type UV disinfection equipment. This advantage can replace 3 to 5 standard output lamps of the same length because of its high power, so it avoids the traditional UV lamp when the water is large. When the use of the UV lamp is too large, the device is bulky, and the number of maintenance lamps is excessive in the future, and the maintenance is not easy. Because amalgam UV lamp technology can output more than 300% of UV light at 254nm higher than traditional low-pressure low-output UV lamps, while maintaining the original sterilization efficiency.
The amalgam UV lamp series is the newest product using the latest lamp technology - low pressure high output alloy mercury UV lamp
1. It maintains high UV output at temperatures in the general environment. Each lamp can output from 42 watts to 500 watts.
2. Long life, up to 12000hrs in normal use
3. At the same length, its output of ultraviolet light is 3 times lower than the low-voltage low-output UV lamp, saving a lot of cost.
4. High efficiency, use purified water
5. Special design allows it to adapt to a wider range of water temperature changes
Quartz sleeve wiper
Due to the long-term operation of the quartz glass casing, the residual pollutants in the influent treatment wastewater tend to adhere to the surface of the glass tube. These materials will form a cover on the surface of the glass tube, which will form an obstacle to the ultraviolet light penetration effect
