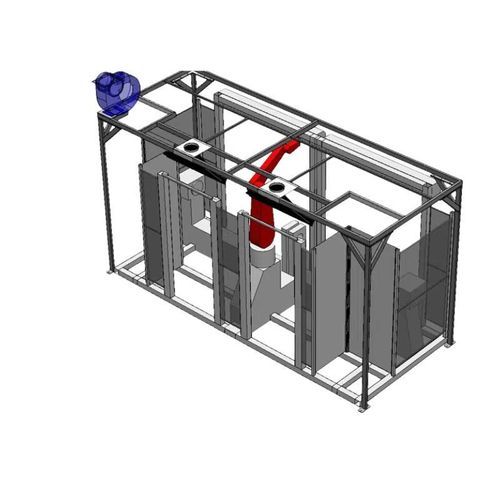

Welding booth

suctionprotectiveclean air

Overview
Protect your robotic welding workshops by preventing the spread of harmful particles. Our custom-designed booths, equipped with extraction systems, ensure a healthy and controlled working environment.

Key features

• Complete extraction of fumes generated during automated welding
• Effective confinement of the welding area, isolated from the rest of the workshop
• Optimized energy consumption by limiting the air volume to be treated
• Integrated ventilation system: controlled extraction and fresh air supply

Benefits

• Prevents the spread of pollutants throughout the workshop
• Reduces air volume to be renewed, enabling energy savings and limiting thermal impact on the environment
• Improves operator safety and working environment hygiene

Standards compliance

• INRS
• DREAL

Customization and design
ENGMAR designs fully customized robotic welding booths to meet specific processes and constraints. Booths are enclosed and ventilated to ensure efficient fume extraction within a completely partitioned space. Custom installations can include integrated ventilation networks, low-vacuum central extraction units, fans, and KTMUP kits composed of fans and gravity shutters to allow air extraction and compensation.

Recommended industries

• Metal machining and forming industry
• Industrial piping
• Sheet metal fabrication and welding
• Locksmithing and metalworking
• Defense

Related services

• Annual periodic inspection in compliance with current legislation

Products commonly recommended with these booths

• Low vacuum central extraction units — single maintenance point, limited footprint, custom installation
• Standard fans for wall mounting designed to extract dust-laden airflows
• Ventilation networks for effective treatment of fume residues and controlled air circulation
• KTMUP kits composed of fans and gravity shutters to allow air extraction and compensation

Technical specifications

• Brand: ENGMAR
• Product type: Custom enclosed and ventilated robotic welding booth
• Main function: Extraction and confinement of fumes from automated welding
• Ventilation: Integrated system with controlled extraction and fresh air supply
• Benefits: Reduced air volume to be treated, energy optimization, limited thermal impact on the working environment
• Compliance references: INRS, DREAL
• Custom design and installation adapted to client needs
• Compatible with low-vacuum central extraction units, standard fans, ventilation networks and KTMUP kits
