Transport materials handling system TEC series

for printed circuit boardsfor SMDprocess

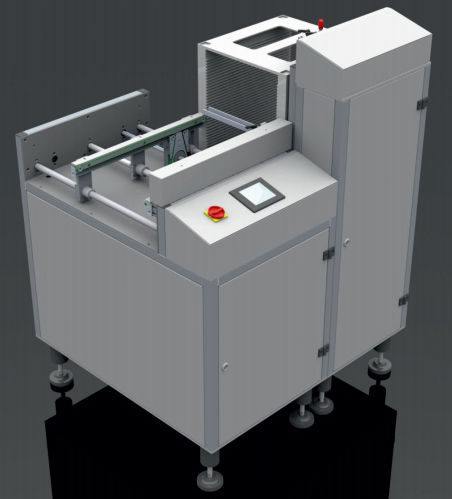

ENGMATEC offers a comprehensive standard program of efficient and proven board handling systems. Transport and handling equipment for SMD lines, assembly systems and test lines The well thought-out module system TECONA Move it! is made up of versatile handling equipment and transport systems for PCBs, soldering frames and carriers. All modules are matched with each other and can be combined with each other as well as with various production systems. An intelligent control concept and standardized interfaces ensure reliable function in any system configuration without control unit change. The combination of the transport widths, magazine types and interfaces is customer-specific, and components, e.g. soldering processes or vision system can be integrated as required. The special flexibility of the standard modules allows to realize cost-efficient adaptations without problems for special customer requirements. Performance spectrum Loader and Unloader ■ Magazine loader ■ Magazine unloader ■ Bare board stacker ■ Bare board destacker ■ Combined Loader/Unloader Conveyors ■ Standard length 400mm to 2.400mm ■ Any quantity of segments ■ Toothed belts, flat belts, pin chain, roller chain ■ Design also as dual lane ■ 1, 2 or 3 transport layer possible Buffer Stations ■ Buffering according to FIFO-method ■ Buffering according to LIFO-method ■ manual magazine change with 1 magazine ■ automatic change with several magazines ■ Process buffers Handling Systems ■ Turn units ■ Flip units ■ Lift units ■ Traverser ■ Gate stations
