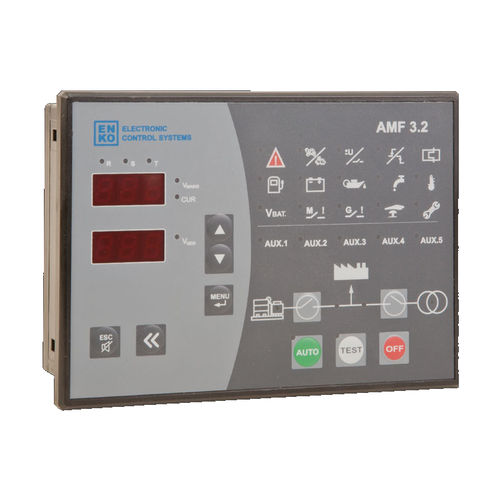

Automatic mains failure genset controller AMF 3.2

automaticthree-phase

AMF3.2 is a full Automatic Mains Failure unit intended to be used for Gen-Set applications where high number of i/o ports are required. The controller can be used with single or three phase mains and generator systems. The unit is designed with high process power for versatile and accurate control of all Gen-Set functions. It controls 3 phase mains and single phase generator voltage and also monitors generator load current. User can program any of the auxiliary i/o ports for custom applications. The menu offers extensive control for each i/o and all the parameters can be configured via PC, using the ENKO PRO-Link configuration program. All the parameters can also be configured from the front panel controls. SMS messages can be sent, using optional GSM interface module. Many of the control variables can be displayed as required. The analog sensor characteristics can be adjusted from the menu to fit any kind of sensor. There are altogether 17 i/o ports available, among which many can be configured by the user. Load power is also measured and can be used with dedicated functions in the menu. Decisions can be made depending on active and/or reactive power of the load. Total accumulated power is also measured and recorded. AMF3.2 control module is optimized for enhanced applications, where customer demands are high and allows minimal solutions for all genset applications with high reliability. Magnetic pick-up input is available for reliable and accurate measurement and control of engine speed.
