ORC module ENO-20LT

0 - 50 kW100 - 500 kWcontainer

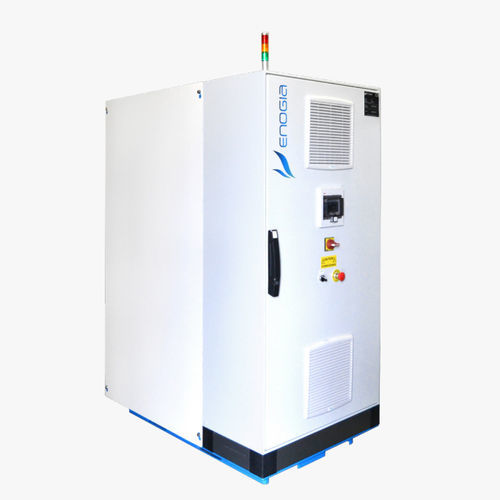

The ENO-20LT module is an ORC manufactured by ENOGIA, able to recover until 320 kWth with a nominal power output of 20 kWe even after low grade heat source at 70°C. Designed with the same state of mind as the 10kWe ORC manufactured by ENOGIA, the ENO-20LT is a turnkey solution involving few hydraulic and electrical modifications to be integrated thanks to its "plug and play" features. This ORC can be implemented on a wide range of applications such as biomass boilers, gas engines,geothermal sources, or industrial processes. Any heat flow with temperatures between 70°C and 120°C can be recovered with this system. The ENO-20LT module accepts the following fluids for the hot loop: water, saturated steam, thermal oil. It is also possible to connect the cold loop of the ORC to a drying system, a floor heating system or greenhouses to reach global efficiency close to 95%. The ENO-20 module can also be offered in an MT version which supports inlet temperatures on the hot loop up to 230°C.
