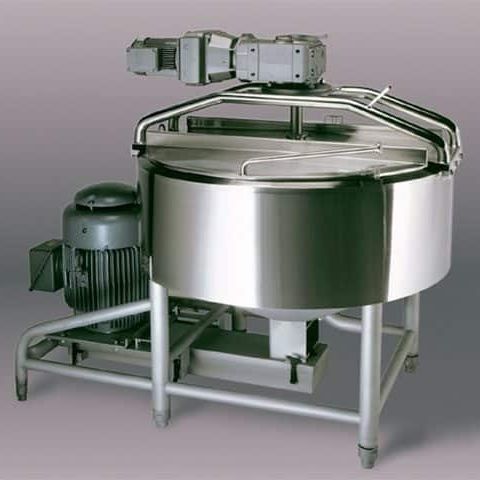

Cooker mixer LORSS

turbineverticalbatch

Temperature Controlled Scraped Surface Icing Cooker & Mixer A World-Class Blender That Delivers High-Speed Blending with Scraped Surface Heat Transfer in One Vessel Unique Built-in Scraping Unit Allows Rapid Heat Transfer Reducing Burn-on The Likwifier Plus icing Cooker & Mixer is a self-contained unit designed to cook and mix icings and glazes in one-third the time of conventional methods. Designed for the safety of the operator, it eliminates the handling or transfer of scalding syrup from the cooker to the mixing machine. The cooking vessel is insulated for efficient cooking and to prevent heat transfer from the cooking chamber to the exterior surface. STANDARD CONSTRUCTION • Special Material: Standard 0.25″ 316L product surfaces • Heat Transfer Surface: Type 316L stainless steel Temp-plate® heat transfer surface designed for 125 psi ASME at 450 deg. F. On shell and bottom cone. • Insulation: 2″ Insuwool insulation on shell and bottom cone. Outlet: 3″ clamp type ferrule. • Casters: Four casters, two swivel and two rigid with brakes mounted on special base plates. Available for 50-100 gallon units. • Top Head: SBC split lids – 50 to 200 gallon size. Dome head with manway – 200 gallon and above. • Available Sizes: 50 – 500 gallons. OPTIONS • Variable frequency controls “NEMA 4” electrical controls mounted in a stainless steel cabinet. 100 through 500 gallon units only. • A/C variable frequency drive system with operator’s panel. A/C inverter mounted in a NEMA 12 (or NEMA 4X) enclosure and operator’s panel in NEMA 4X.
