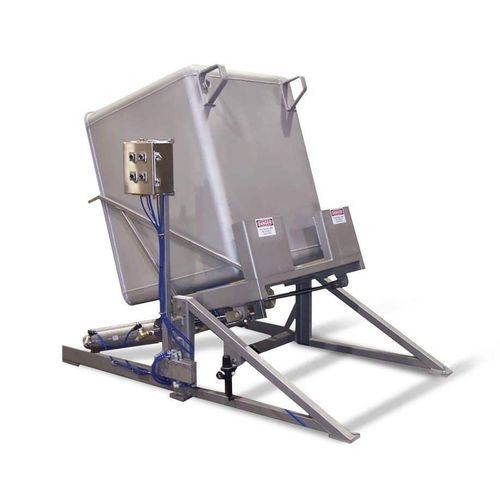

Pneumatic tipping station

for containersfixedstainless steel

Looking for an easy, ergonomic way to wash your vats, V-Mag carts and dough troughs? We have the perfect solution to revolutionize your sanitation routine. Based on ingenious design, these remarkable machines invert the soiled container providing easy-reach access to all four sides for a thorough cleansing. These inverters feature pneumatic operation, so no electrical connections are needed, preventing the risk of shock in a damp environment. Eliminate the risk of injury and improve your plant’s sanitation with our full line of Inverters. STANDARD FEATURES • USDA accepted • Stainless steel T-304 construction • Pneumatically operated • 1/4″-thick channel vertical uprights • 7- & 11-gauge square tube framework • 2″-diameter pivot shaft • Maintenance-free UHMW pivot bearings • 1/4″- and 3/8″- thick reinforcement at pivot points • Square tubing outrigger frame • Pneumatic hold down mechanism • Stainless steel hydraulic tilt cylinders • Floor level loading • 3/8″-thick bottom runners • 3/8″-thick mounting pads • Complete controls with Allen Bradley components • Stainless steel enclosure • All continuous welds • Glass bead-blast finish
