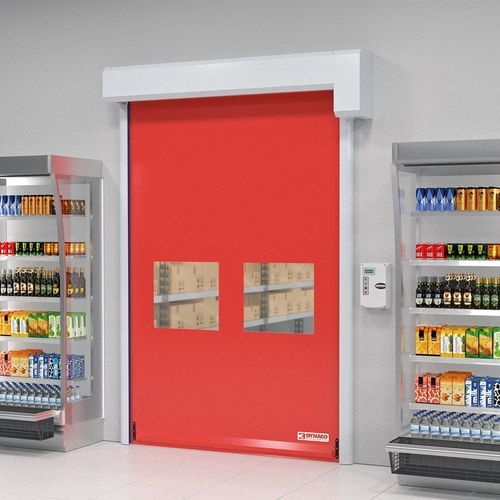

Cold storage door E-211 INT

indoorfor the automobile industryfor shop

Overview
The DYNACO E-211 INT is a high-speed, compact interior door engineered for industrial environments where efficient separation, safe passage and reliable sealing are required. It is tailored to control airflow, separate production zones and streamline internal logistics while minimizing footprint.

Key features

• Crash-forgiving curtain with self-repairing properties to reduce damage and downtime
• Soft bottom edge to protect personnel and equipment
• Fast opening speed to reduce cycle time and improve workflow
• Effective sealing to limit dust, noise and temperature variations
• Compact, space-saving design suitable for limited lintel and side guide spaces
• Simple installation and low maintenance requirements

Applications

• Food processing facilities
• Cold storage and refrigerated zones
• Industrial production and logistics areas
• Retail and automotive interior environments

Benefits

• Optimizes internal logistics by separating work areas and controlling airflow
• Improves safety with a forgiving curtain and soft bottom edge
• Maintains cleaner, more controlled workspaces through reliable sealing
• Reduces operating costs with low maintenance and durable design

Technical specifications

• Model: E-211 INT
• Usage: interior
• Technology / Drive principle: Gravity
• Maximum dimensions (W x H): up to 4500 x 4600 mm
• Minimum dimensions (W x H): from 900 x 1000 mm
• Opening speed: up to 2.0 m/s
• Closing speed: up to 0.8 m/s
• Lintel space required: 510 mm
• Side guide width: 95 mm
• Curtain: flexible, crash-forgiving, self-repairing
• Sealing: designed to control dust, noise and temperature variations
• Installation: easy to install; Maintenance: minimal
