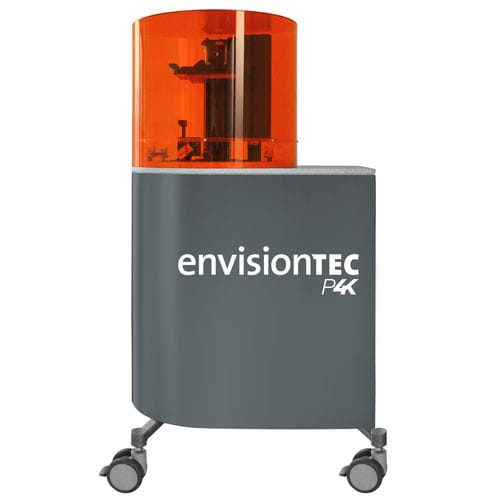

ABS 3D printer P4K series
DLPfor hearing aidsindustrial

ABS 3D printer
ABS 3D printer
ABS 3D printer
Add to favorites
Compare this product


Materials to be printed
industrial, dental, for hearing aids
Other characteristics
on casters
X travel

90 mm, 160 mm, 192 mm, 230 mm
(4 in, 6 in, 8 in, 9 in)

Y travel

56 mm, 100 mm, 120 mm, 144 mm
(2 in, 4 in, 5 in, 6 in)

Z travel

180 mm
(7 in)


Introducing the only DLP-based 3D printers utilizing a true 4M pixel projector with UV optics tuned to 385nm wavelength. The P4K Series delivers the highest accuracy coupled with the highest finished product functionality. Utilizing Artificial Intelligence (AI) in pixel tuning to deliver extremely high quality surface finish, the P4K delivers next generation advanced DLP technology in 3D printing. MACHINE PROPERTIES Version: P4K 35 or P4K 62 or P4K 75 or P4K 90 Build Envelope: 90 x 56 x 180 or 160 x 100 x 180 mm or 192 x 120 x 180 mm or 230 x 143.75 x 180 mm Native Pixel Size XY: 35 µm or 62 µm or 75 µm or 90 µm Pixel Size With ERM: 23 or 40 or 49 or 59 Dynamic Voxel Resolution in Z: 25 – 150 µm, material dependent Projector Resolution: 2560 x 1600 (WZXGA) Data Handling: STL Warranty: 1 Year Included Footprint: 73 x 48 x 135 cm or 73 x 48 x 160 cm Electrical Requirements: 100-120, 5.4 Amp or 220-240V, 2.4 Amp SYSTEM PROPERTIES • Economic material use with no vat • Minimized components make the system user serviceable • Designed to run 24/7 in a production environment • Delivered with all relevant software to enable automatic support generation and perfect model production • Material changeover can be done quickly and easily
