Nozzle mix burner 80 - 230 kW | COMIST 20
dual-fuelnatural gasdirect fired

nozzle mix burner
nozzle mix burner
nozzle mix burner
Add to favorites
Compare this product


nozzle mix
Power source
dual-fuel, natural gas
direct fired
natural convection

Min.: 80,000 W (272,971.2 BTU/h)

Max.: 230,000 W (784,792.2 BTU/h)

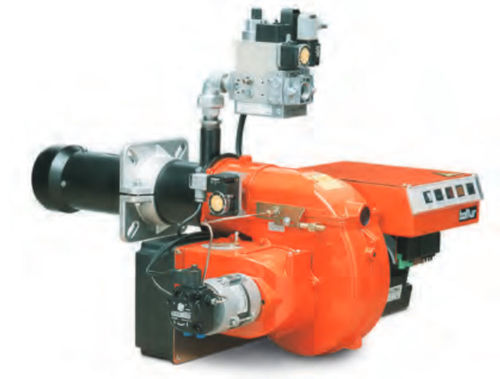

The Comist 20 from Eogb is a single-stage gas/light oil dual fuel burner. The unit can be alternately used as a natural gas/light oil burner. The unit can operate with 80 to 230 kW. It also conforms to Gas Directive 90/396/CEE, E.M.C. Directive 89/336/CEE, and L.V. Directive 73/23/CEE. Maintenance is facilitated through the elimination of the atomisation unit, without the need for removing the burner from the boiler. When utilizing biodiesel light oil, the burner must be made with flexible hoses, line filter and a pump. The burner is supplied with one 7-pole connector, and one flange and one insulating seal for boiler fastening.
