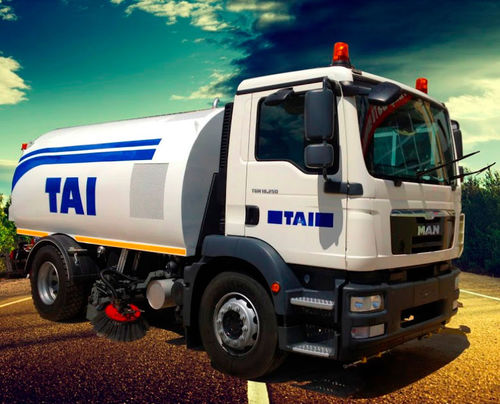

Street Sweeping Vehicle
> Street Sweeping Vehicle Sweeping process executed automatically.
> The whole functions of the vehicle guided from a controlling board placed in the cabinet.
> Storage capacity which used in the sweeping vehicle is 2-8 m3 that depends on the features of the vehicle.
> The thickness of the steel material which used in the ground of the trash reservoir is averagely 4-5 millimeters. Also, a steel material having 3-4 mm thickness used in the head race of the reservoir either.
> Air canals situated in the trash reservoir in order to execute air circulation.
> With the intent of separating the gathered trashes in the reservoir, a sieve placed in it.
> A telescopic type hydraulic system established on the purpose of raising the trash reservoir.
> Raising the reservoir and sweeping process managed from the drivers’ compartment.
A water tank, having 1200-1500 liter capacity and manufactured from stainless steel material, found in the street sweeping vehicle. The requested pressure gained from a pump with a hydraulic system.
Motor and fan system
The required movement for the sweeping process procured from the engine of the vehicle. The engine controlled from the drivers’ compartment. The fan activates the brush system and the water pump.
The trash reservoir and the rear cap operates with a hydraulic system. A hydraulic lock system determined on the rear cap in order to keep the cap safe. Oil pan having nearly 100 liters capacity allocated for the hydraulic system.
