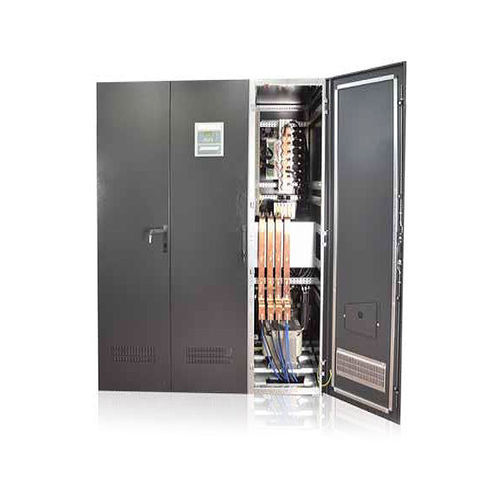

Single-phase voltage regulator tCON Series
three-phasefor telecommunication equipmentfor marine applications

single-phase voltage regulator
single-phase voltage regulator
Add to favorites
Compare this product


Characteristics

Options
single-phase, three-phase
Applications
for telecommunication equipment, for marine applications, for medical applications
Certifications
ISO
Other characteristics
automatic, digital, analog, manual, electronic
Power in kVA

Min.: 1 kVA
(1.36 hp)

Max.: 2,000 kVA
(2,719.24 hp)

Description

Description GENERAL SPECIFICATIONS Single Phase, 3kVA – 50kVA Three Phase, 10kVA – 2000kVA DSP (Digital Signal Processor, 16-bit) with intelligent control and high reliability Normal and wide bandwidth Static (thyristor) switching due to the quick response and regulation time (500V/s) Up to 25 levels of voltage regulation Network / Regulator selection switch Static and manual bypass High efficiency Optional built-in output isolation transformer Measurement, 2×16 character LCD display that can show their status and alarm messages Electronic and electromechanical protections thermal-magnetic protection and extinguishing input voltage (which suppresses sudden voltage pulse) Output safety contactors LED indicators can easily monitor the status of the regulator Audible alarm. Ability to program all study variables (password protected) The possibility to calibrate the measurements from the front panel Language selection from the front panel (English, German, Turkish, Dutch, Portuguese, Spanish, Arabic) Automatic self-test mode Up to 200 dates and times for event recording Permanent 1 general alarm for relay contact output Easy maintenance Making the network performance analysis Programmable alarm relay output RS232 ability to monitor Modbus communications, 1 year Warranty 10-year spare parts guarantee and extensive service support OPTIONS Programmable alarm relay output (up to 16). SNMP and RS485 Input / Output Voltage / Current Transducers. (4-20mA and 0-10V simultaneously) Easy monitoring with Analog meters Touch graphic LCD display (Russian and Arabic support) Interior cabinet light, cabinet heater, dust filter etc. Internal input and output isolation transformer

Catalogs

No catalogs are available for this product.

See all of EPC ENERGY AND POWER CONVERSION‘s catalogs
