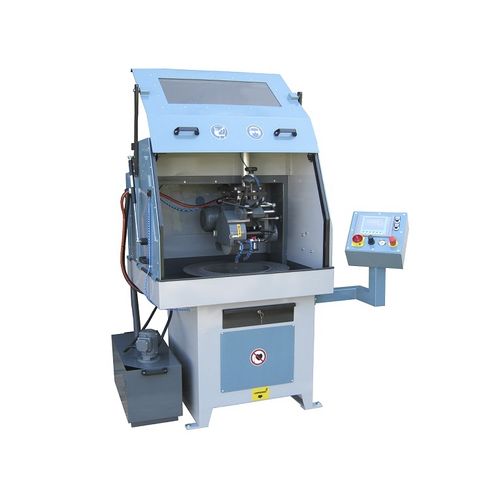

Metal polishing machine PL 800 K

sawingautomaticvariable speed

Automatic polishing machine for polishing carbide saw blades and saw bodiesPL 800 K 21 For 80 mm to 600 mm and 800 mm in diameter Technical Data Polishing Motor 1,5 KW (2 HP), 1400 RPM double V-belt drive, for polishing wheels of 250 mm (10″) diameter Wheels Dresser with Diamond Cluster. Table Drive Motor 0,75 KW (1 HP) 100 RPM, direct drive. Polishing speed can be set by means of infinitely variable speed regulation via the frequency converter.It is not necessary to clamp the saw blade, changeable centering collars and rubber mat hold the saw firmly on the table. Operating voltage: - 230/400 Volts, 3-Phase, 50 cycles 230/440 Volts, 3-Phase, 60 cycles (other voltages/cycles on request) Current Load: - 16 Amp, time-lag Feed Control: - hydropneumatic, fully adjustable Air Consumption: - at 6 bar (87 PSI) 40 litres per minute (1,6 CFM) Weight: - PL 600=390 kg, PL 800=430 kg Weight with hood: - PL 600=487 kg, PL 800=537 kg
