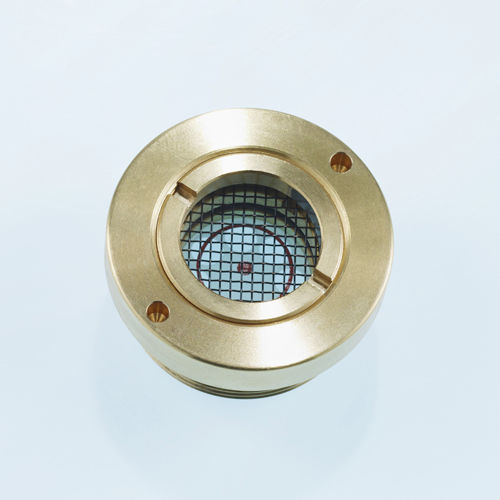

Oil level indicator OSG-D
visualstainless steelthreaded

oil level indicator
oil level indicator
oil level indicator
oil level indicator
Add to favorites
Compare this product


Characteristics

Fluid
oil
Technology
visual
Other characteristics
stainless steel, threaded, brass

Description

Oil level gauges with patented two-chamber protection system are usually made from brass and have a stainless steel grid as impact protection. If the out glass breaks due to impact, the stainless steel grid catches the projectile, so that the inner special glass remains intact. The system can withstand impact from objects with a mass of up to 30 g and a speed of up to 50 m/s. The operating temperature is between -30°C … +120°C, with short peaks of up to 150°C (< 5 min). A reflector can be installed and markings applied on request. -Level and fluid gauge -Housing made from brass or stainless steel -Patented two-chamber system -Optional impact protection -Temperature range -30°C … +120°C -High-quality, temperature-resistant glass -With or without reflector -Markings as requested by customer -Customer-specific dimensions
