CO2 laser cutting machine Fusion Edge 12
fiber laserfor acrylicsfor aluminum

CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
fiber laser, CO2 laser
Material
for leather, for aluminum, for stainless steel, for brass, for titanium, for rubber, for acrylics, for wood, for marble, for paper
Product handled
panel
Associated function
engraving, marking
Configuration
compact
Other characteristics
high-speed
X travel

610 mm
(24 in)

Y travel

305 mm
(12 in)

Z travel

178 mm
(7 in)

Laser power

30 W, 40 W, 50 W, 60 W

Resolution

Min.: 75 dpi

Max.: 1,200 dpi

Overall width

1,003 mm
(39 in)

Height

455 mm
(18 in)

Weight

63 kg
(138.89 lb)

Description

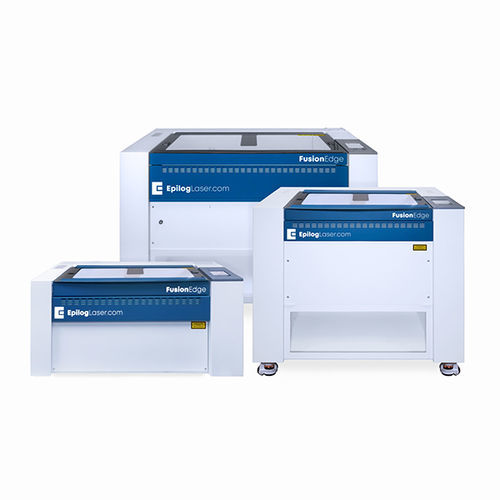

Featuring up to 120 IPS (3.05 m/s) engraving speeds, 5g acceleration, and a variety of wattage configurations, the Fusion Edge Laser Series from Epilog can help you boost your productivity and expand your product offerings. Comprised of the Fusion Edge 12, 24, and 36, all the machines in the Edge Series feature Epilog’s revolutionary IRIS™ Camera System that gives laser operators a real-time image of the engraving table so they can quickly and accurately position their artwork on even the most uniquely shaped items. Systems in the Fusion Edge Series can engrave and cut a variety of materials including wood, acrylic, fabric, cork, rubber, slate, glass, and so much more. Additionally, these easy-to-use laser machines include a 7-inch LED-lit touch display, trace capabilities at the laser, as well as SAFEGUARD™ features that keep the mechanics of your laser cleaner than ever. FEATURES: Machine Enhancements Designed to Increase Productivity The Fusion Edge laser engraving and cutting machines from Epilog Laser combine our top-of-the-line technology and our latest features in three formats: a compact desktop machine with the Fusion Edge 12, the mid-size Fusion Edge 24, and a larger standalone system with the Fusion Edge 36 - all leveraging over three decades of laser machine design and manufacturing experience to create powerful and truly modern systems.

VIDEO
