Blasthole drilling rig DM series

rotarydown-the-holeautomatic

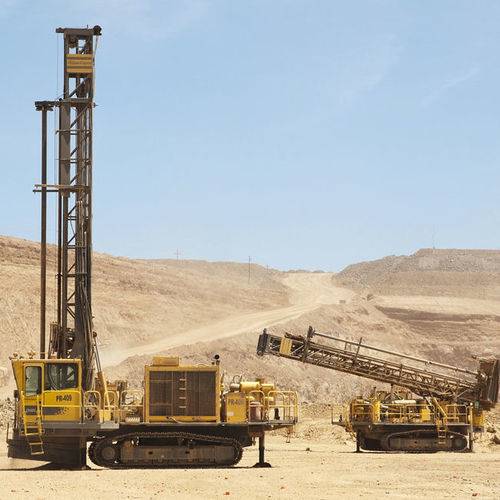

The DM45/50 rotary blasthole drill rig, along with its larger counterpart the DML, are among the most popular drills globally, recognized for their productivity, reliability, and low operating costs in a wide range of mining conditions. The robust DM45/50 mainframe and tower design ensure a long asset life, even in the toughest mining environments. The double-cut structural tower lacing provides a strong tower structure without unnecessary weight. When additional air and pulldown are needed, the DM45 can be upgraded to a DM50, offering flexibility for larger hole sizes within the DM45/50 range.

Operator comfort

• The DM45/DM50 features an insulated, air-conditioned, pressurized cab with an adjustable swivel seat and excellent visibility.
• All operational functions are controlled from the driller’s console, and the ergonomic layout allows operators to instantly switch from drilling to tramming for increased productivity.

Options to fit your application

• Choose from a variety of high- and low-pressure compressors to create the right configuration for your drilling operation.
• Optional on-board automation capabilities are available with the Rig Control System Lite (RCS Lite) for added safety and productivity.

Key Features

• Electronic Air Regulation System (EARS) is standard
• Multiple engine and air compressor options
• High speed feed and retract

Quick facts

• Main application area: Blasthole drilling in open-pit mining
• Drilling method: Rotary and DTH - Multi pass
• Product family: DM
• Single-pass depth: 8.4 m
• Maximum hole depth: 53.3 m
• Weight on bit: 20,412 kg
• Pulldown capacity: 0 - 22,000 kN
• Pullback capacity: 0 - 98 kN
• Note: Product variations apply. See brochure for more information.

Dimensions

• Height - tower up: 13.3 m
• Length - tower up: 9.8 m
• Height - tower down: 4.3 m
• Length - tower down: 13.3 m
• Width: 5.23 m
• Estimated weight: 35 - 43 Tonnes

Characteristics / Technical Specifications

• Powerful rotary tricone and down the hole hammer drill for 140mm - 225mm (5-1/2” to 8-7/8”) holes
• Robust mainframe and tower design for high asset life
• Double-cut structural tower lacing for strength without excess weight
• Upgradeable from DM45 to DM50 for larger hole sizes
• Insulated, air-conditioned, pressurized cab with ergonomic controls
• Multiple compressor and engine options
• Optional Rig Control System Lite (RCS Lite) for automation
