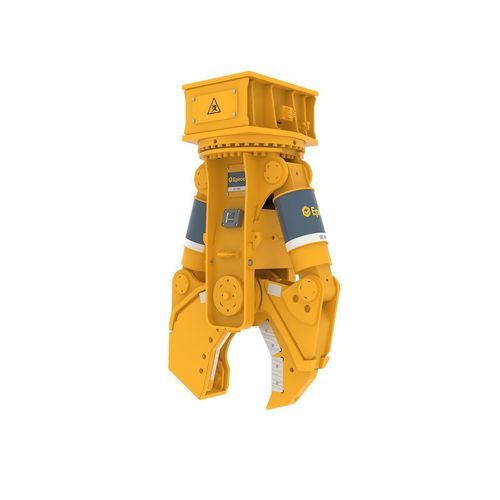

Concrete cutter CC 1600 U

The CC 1600 U is a concrete cutter designed for excavators weighing between 13 and 23 tons (28,650–50,700 lb). This versatile attachment is suitable for a wide range of demolition and recycling applications, offering multiple jaw options to adapt to different tasks. Users can choose from Universal jaws (U), Steel cutting jaws (S), or Pulverizer jaws (P), making the CC 1600 U a flexible solution for primary demolition, secondary reduction of concrete structures, and cutting steel at demolition sites.

Jaw Options

• Universal jaws (U): For general concrete cutting and demolition.
• Steel cutting jaws (S): Optimized for cutting steel structures.
• Pulverizer jaws (P): Designed for crushing and pulverizing concrete and rock.

Technical Specifications

• Carrier weight class: 13 - 23 t
• Opening cycle: 1.3 seconds
• Closing cycle: 1.3 seconds
• Oil flow: 150 - 250 l/min
• Operating pressure: 350 bar

Rotation Device

• Oil flow, rotation: 35 - 50 l/min
• Max. operating pressure: 170 bar

Universal Version (U)

• Service weight: 1,625 kg
• Product weight: 1,454 kg
• Jaw opening: 700 mm
• Jaw depth: 490 mm
• Blade length: 350 mm
• Cutting force, jaw tip: 197 t
• Crushing force, jaw tip: 57 t

Steel Cutting Version (S)

• Service weight: 1,550 kg
• Product weight: 1,350 kg
• Jaw opening: 380 mm
• Jaw depth: 385 mm
• Blade length: 380 mm
• Cutting force, jaw tip: 197 t
• Crushing force, jaw tip: 61 t

Pulverizer Version (P)

• Service weight: 2,070 kg
• Product weight: 1,870 kg
• Jaw opening: 830 mm
• Jaw depth: 540 mm
• Blade length: 140 mm
• Cutting force, jaw tip: 197 t
• Crushing force, jaw tip: 54 t

Additional Notes

• Weights apply to standard carriers only. Any variances must be agreed with Epiroc and/or the carrier manufacturer prior to attachment.
• Combi Cutter with medium-sized adapter.
• Full details of measurement are available in the safety and operating instructions.

Features

• Multiple jaw options for versatile demolition and recycling tasks.
• Robust construction for demanding environments.
• Compatible with HATCON (Hydraulic Attachment Tools Connectivity) for advanced fleet management, monitoring operating hours, location, and service intervals.

Characteristics / Technical Specifications

• Carrier weight class: 13 - 23 t
• Opening cycle: 1.3 seconds
• Closing cycle: 1.3 seconds
• Oil flow: 150 - 250 l/min
• Operating pressure: 350 bar
• Rotation oil flow: 35 - 50 l/min
• Max. rotation pressure: 170 bar
• Universal version (U): Service weight 1,625 kg, Product weight 1,454 kg, Jaw opening 700 mm, Jaw depth 490 mm, Blade length 350 mm, Cutting force 197 t, Crushing force 57 t
• Steel cutting version (S): Service weight 1,550 kg, Product weight 1,350 kg, Jaw opening 380 mm, Jaw depth 385 mm, Blade length 380 mm, Cutting force 197 t, Crushing force 61 t
• Pulverizer version (P): Service weight 2,070 kg, Product weight 1,870 kg, Jaw opening 830 mm, Jaw depth 540 mm, Blade length 140 mm, Cutting force 197 t, Crushing force 54 t
