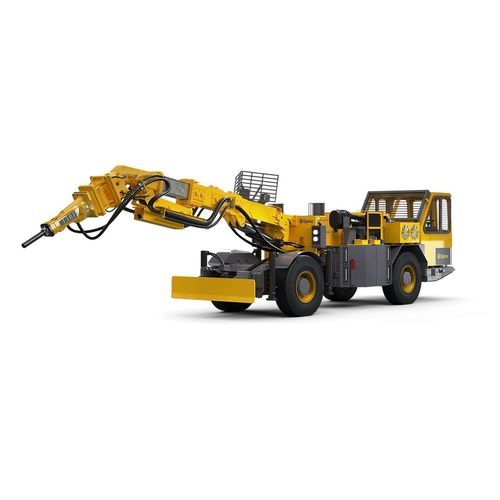

Underground utility vehicle Terrah TS100 SC

diesel4-wheel drive

The Terrah TS100 SC is a reliable underground rock scaler designed for demanding operations in small to medium-sized tunnels. It prioritizes operator safety and productivity, featuring robust protection, excellent visibility, and easy maneuverability. The strong telescopic boom and hydraulic hammers enable precise rock scaling with a reach of more than 6.5 meters in a single setup, covering up to 50 m².

Key Features

• Operator safety: The enclosed FOPS and ROPS-approved cabin is positioned at a safe distance from the operating end, keeping the operator away from unsupported ground. This placement reduces risk exposure and provides excellent visibility of the scaling operation. The cabin is equipped with protective grids on the boom and windows, and an integrated dust suppression system for additional safety.
• Heavy-duty design: Engineered for demanding scaling conditions, the Terrah TS100 SC uses reliable, well-proven components, a strong boom with large wear plates, a protected boom extension cylinder, and a dozer blade to improve road access.
• Productivity: The compact design and great maneuverability minimize time spent between different faces. The telescopic boom allows for an impressive reach and precise control, accessing a large area of 50 m² from a single setup.

Performance Highlights

• Engine power: Up to 129 kW
• Coverage area: 50 m²
• Maximum speed: 27 km/h

Additional Details

• Scaling performance is enhanced by powerful Epiroc SB202 and SB302 hydraulic hammers.
• An additional rotating unit improves access and precision.
• Dozer blade included for removing broken rocks and debris.

Caractéristiques / spécifications techniques

• Product type: Underground scaler for small to medium-sized tunnels
• Engine power: Up to 129 kW
• Coverage area: 50 m²
• Maximum speed: 27 km/h
• Telescopic boom reach: More than 6.5 meters in a single setup
• Cabin: Enclosed, FOPS and ROPS-approved, with protective grids and dust suppression
• Hydraulic hammers: Epiroc SB202 and SB302
• Dozer blade: Yes
• Integrated dust suppression system: Yes
