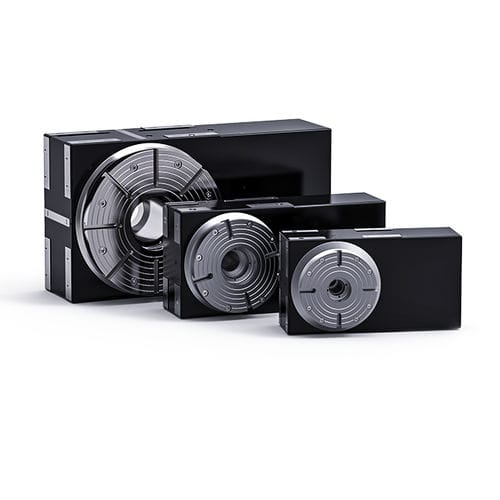

Motor-driven rotary table ETS-260horizontalfor machine toolsCNC
Add to favorites
Compare this product
Characteristics
- Operation
- motor-driven
- Configuration
- horizontal
- Applications
- for machine tools
- Other characteristics
- CNC
- Diameter
260 mm
(10 in)
Description
CNC rotary tables of the ETS series are our solution for your 4th axis. The ETS models are equipped with a spindle holder according to ISO 702-1. Interchangeable discs for all common clamping systems are additionally available.
Spindle hole diameter - mm - 60 durchg.; 100 H7
Tip height - mm - 155
Width of the T-slot - mm - 12 H7
Clamp - - Pneu / Hydr
Clamping torque - Nm - 400 / 1600
Positioning accuracy - arcsec - ± 3
Repeatability - arcsec - ± 1
Rotational speed - min-¹ - 22
Gear ratio - - 40 : 1
Weight - kg - 200
max. moment of inertia - kg m² - 8
