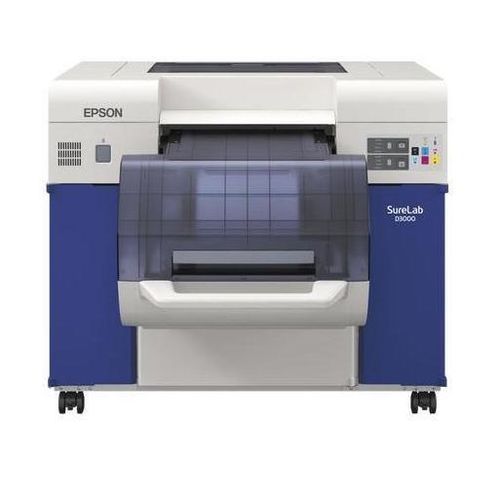

Inkjet printer SureLab D3000 DR

floor-standing6-colorhigh-resolution

Overview
The Epson SureLab D3000 DR is a dedicated photo production printer using Epson Micro Piezo printhead technology and the UltraChrome D6 6‑colour inkset. It delivers up to 1440 x 1440 dpi on lustre and glossy media and supports media widths from 4 to 12 inches and print lengths from 3.5 to 48 inches, enabling runs of photos, cards and promotional materials with consistent colour reproduction.

Key features

• Printing resolution: up to 1440 x 1440 dpi (lustre/glossy); 720 x 720 dpi available for matte and other modes
• Ink system: UltraChrome D6, 6 colours (Black, Cyan, Light Cyan, Light Magenta, Magenta, Yellow), 700 ml cartridges
• Media support: Glossy, Lustre, Matte; widths 102–305 mm (4–12 in); roll and cut-sheet handling with auto cutter
• Production capacity: up to ~650 prints per hour (4 x 6" / 10 x 15 cm) depending on media and mode
• Operational features: Auto Nozzle Check, optional OrderController software, rear/back print unit and optional A4 10‑tray sorter

What is in the box?

• Back Print Unit
• Cleaning sheets
• Document pack
• Humidity Control Unit
• Ink set (6 cartridges)
• Maintenance tank
• Paper band(s)
• Spindle unit(s)
• Two ribbon cassettes
• USB cable

Technical specifications

• Print technology: Epson Micro Piezo drop-on-demand; Variable Sized Droplet Technology; print modes for matte, lustre, glossy
• Minimum droplet size: 1.5 pl
• Max print width: 307 mm; roll print sizes from 102 x 89 mm to 305 x 1219 mm (4" x 3.5" to 12" x 48")
• Roll specs: max length 100 m; core 76 mm (3 in); external diameter 265 mm; weight limits Front <7.5 kg / Rear <8.5 kg
• Power: approx. 600 W (operating); voltage 100–120 V or 220–240 V, 50/60 Hz
• Noise: <60 dB(A) (ISO9296)
• Software & interfaces: Printer driver, System Application (standard); OrderController (optional); Hi‑Speed USB (USB 2.0)
• Dimensions & weight: 850 x 1150 x 730 mm (W x D x H); 127 kg
• Warranty: 12 months on-site service
