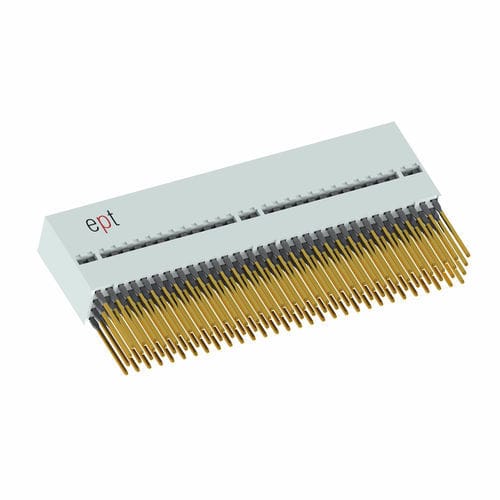

Female connector 264-61303-12databoard-to-boardpress-fit
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- board-to-board
- Connection type
- female, press-fit
- Material
- PC, PBT, copper, glass
- Primary current
1.7 A
- Voltage
100 V
- Pitch
2 mm
(0.079 in)- Operating temperature
Max.: 125 °C
(257 °F)Min.: -55 °C
(-67 °F)
Description
• termination length 12 mm
• 120 contacts
• performance level 3
• for 22 mm board-to-board distance
Basics
Specification - PC/104-Plus
Performance Level - 3
No. of Contacts - 120
Termination Technology - Press-fit
Termination Length - 12 mm
Board-to-Board Distance - 22 mm
Material
Insulator Material - PBT glass filled, UL 94 V-0
Contact Material - Copper alloy
Mating Force per Pin - max. 1.5 N
Separating Force per Pin - min. 0.3 N
Contact Resistance - 106 MΩ
Approval / Compliance
Environment - RoHS compliant
