Enameled wire stripping machine DCFR
rotary bladeelectric

enameled wire stripping machine
enameled wire stripping machine
Add to favorites
Compare this product


Characteristics

Product to be stripped
enameled wire
Technology
rotary blade
Other characteristics
electric
Diameter

Max.: 1 in

Min.: 0 in

Description

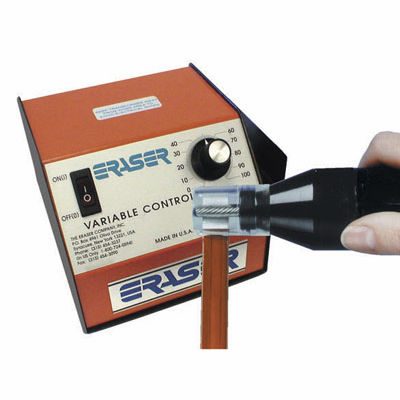

The DCFR uses a rotating carbide rasp head to strip square, rectangular, or flat magnet or enamel wire insulations including glass, varnish, epoxy and polythermaleze. The variable speed power unit controls the speed. Insulation is cleanly removed but the wire conductor is not damaged. This tool is ideal for the production and repair stripping of armatures, coils, chokes, transformers, relays, solenoids, etc. The optional Bench Kit enables it to be used as bench mounted machines. The DCF Series from The Eraser Company includes a wide range of wire strippers and twisters. Models DCF1 (drilled ver), DCF2/3 (drilled ver) and DCF4 (drilled ver) use centrifugal force to cleanly remove the insulation from round magnet and enamel wire. Combined, these units can strip wire from 35-9 gauge. These models are also available in a drilled through version for infinite strip lengths. The DCFR can strip square, rectangular, and flat magnet and enamel wire using a rotating carbide rasp head. The DCFT uses a twisting head with three fingers to neatly twist together the ends of pre-stripped stranded wires. The DCFH produces twisted pairs by twisting a looped wire on a hook. The power unit allows for variable speed control, and a switch supports usage in both 115 and 220V. An optional Bench Kit enables all models to be used as bench machines.
