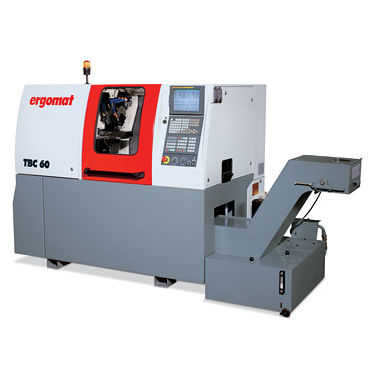

CNC turning center TBC 42/60
8-axiscompactmulti-slide

CNC turning center
CNC turning center
CNC turning center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
8-axis
Other characteristics
compact, multi-slide, universal

Description

compact machine lay out with wide working area spindle: bar capacity 42 mm (1 5/8) and 60 mm (2 3/8) C-Axis Fanuc 18i-TB dual path control 8 CNC axes all axes driven by GE - Fanuc servo motors up to 4 axes machining simultaneously 2 vertical slides (V1, V2) for forming and cutting including toolholders 16 x 16 cross slide front (X1Z1) cross slide rear (X2Z2) with - servo driven turret, including: - eight tool positions - live tooling - pick off spindle, synchronizable with main spindle - switching time: station/station: 0,3 sec. /180º: 0,48 sec. - cooling through tools back side machining with 3 fixed tools (option: up to 2 live tools) hydraulic chucking system incl. cylinder hydraulic unit interface for bar loader In addition we offer: technical support training original spare parts after sales service
