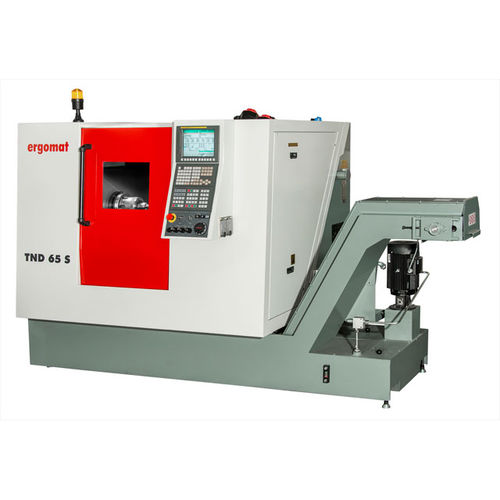

CNC lathe TND 42/65 S

CNC lathe
CNC lathe
CNC lathe
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Spindle speed

4,000 rpm, 5,000 rpm
(25,132.741 rad.min-1, 31,415.927 rad.min-1)

Description

Compact Turning Center with large working área 60º slant bed provides efficient fall of chips Electric cabinet integrated in machine frame Fanuc control Main spindle The machine comes standard with a clamping system by collets DIN 6343 up to 60 mm; other collet systems up to Ø 65 mm are available. Subspindle Travels in X and Z Clamping collets DIN 6343 up to 42 mm or other commercially available collet systems Option: chuck Ø 85 mm Work pieces up to Ø 30 mm can be unloaded through the subspindle. Upper turret 12 positions VDI 25 live tools available Lower turret 8 positions VDI 25 Live tools available Parts catcher An unloading shell, mounted on the lower turret leads the machined parts to a conveyor belt with exit on the left side of the machine. Coolant pump 6 (20*) bar Chip conveyor integrated in coolant tank
