Pallet turner VC-20hydraulicelectric and hydrauliccrate
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, electric and hydraulic
- Applications
- pallet, crate, for containers
- Other characteristics
- lifting, for forklift trucks, fixed, metal, compact, automatic, in-line, with adjustable holder, rotating, platform, for elevators, for the food industry
- Carrying capacity
1,500 kg
(3,306.93 lb)- Lifting height
Min.: 680 mm
(26.77 in)Max.: 2,400 mm
(94.49 in)
Description

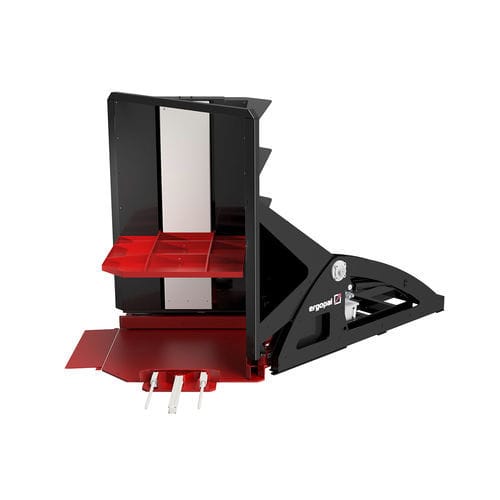

Introducing the Ergopal VC-20 pallet changer - a state-of-the-art stationary solution for seamless pallet exchange without manual handling.
Simply load your pallet with a pallet truck or jack and watch as our machine efficiently rotates 115 degrees with the product.
The base plate lowers the existing pallet to the floor, replaces it with a new one and lifts it back under the product.
With optional extras and versatile surface treatments, including powder coating or electroplating, the Ergopal VC-20 offers innovation and customization to enhance your cargo handling experience.
Technical Data
Capacity: - 1500 kg
Maximum load height: 2050 mm
Minimum load height: 680 mm
Clamp table size: 1200 x 1200 mm, 1320 x 1270 mm
Changes per hour: 25 - 30
operated by: Pushbutton, HMI
Loading / Unloading: hand pallet truck
Degree of rotation: 115 degrees
Power supply: 3ph/400v/20A
Motor size: 4kw
Painting: 2-component epoxy
Safety fence: included
