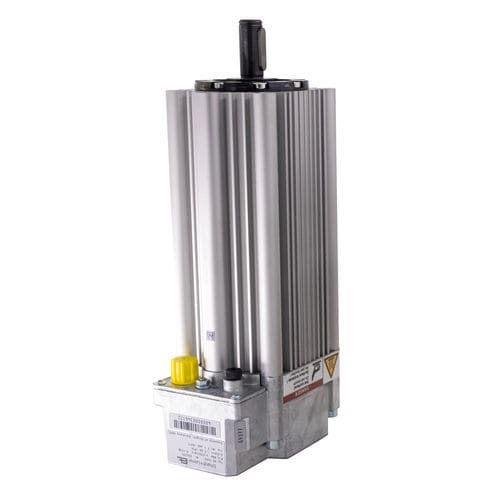

BLDC motor AD 14

DC24 Vcompact

•Decentralized drive technology with integrated control electronics, compact and tailor-made for customer-specific solutions •Permanently excited synchronous machine (BLDC motor), particularly suitable for applications requiring very smooth running and a long service life •Constant torque across the entire rotational speed range •High-resolution multiturn encoder for determination of rotor position and absolute position •Absolute position detection, even after loss of voltage (without buffer battery) •High power density and overload capability •Integrated temperature monitoring •Two-row slanting ball bearing offers protection for high axial loads •Integrated fieldbus interface with certified standard protocols •Simple configuration via web-based management with standard web browser Can be combined with all E+L gearbox variants and with the safety brake system •Optionally with integrated logic card for end position limitation •Optionally with additional STO (Safe Torque Off) function for functional safety in accordance with EN IEC 61508 with SIL 3 and EN ISO 13849-1 with Category 3 Performance Level d
