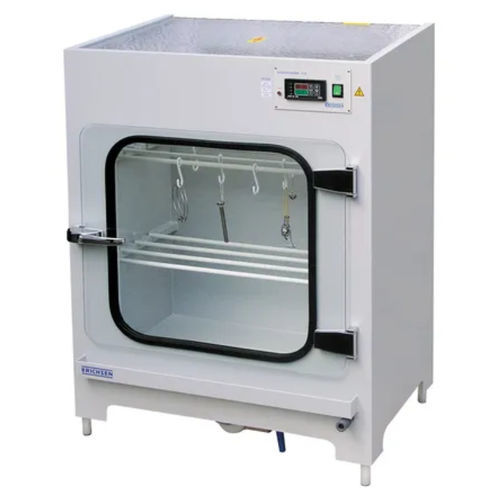

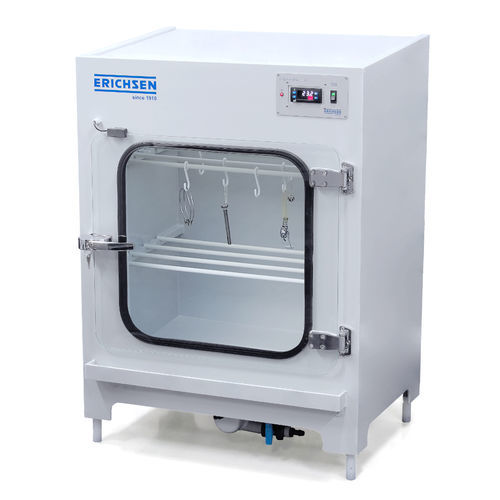

Climate chamber HYGROTHERM 519

humiditytemperaturecondensation

The HYGROTHERM 519 is a condensation test cabinet for standardized corrosion and condensed water testing. It features a 300-litre test chamber, easy specimen handling and is suitable for continuous or batch testing in industrial and laboratory environments.

Key features and design

• 300 L acid- and heat-resistant plastic test chamber with large transparent access door
• Specimens suspended from seven freestanding cross rails for reproducible exposure
• Simplified manual operation or options for automated, continuous testing
• Designed for extended exposure to aggressive climates and condensed-water climates (CH)

Purpose and application
The HYGROTHERM 519 is used to assess corrosion resistance and the behavior of coatings, protection systems and materials under condensed water conditions according to international standards such as DIN EN ISO 6270-2. It is suitable for research, quality control and type testing in industrial settings.

Scope of delivery

• Humidity Cabinet HYGROTHERM 519
• 7 specimen carriers
• 100 S-hooks
• Operating instructions
• Manufacturers Test Certificate M

Standards

• DIN EN ISO 6270-2 CH
• DIN 50958
• DIN 55991
• ISO 11503
• ASTM D2247
• BS 3900 Part F2

Accessories (examples shown on the product page)
Examples: analogue output, data acquisition and recording system (HOBO UX120), specimen carrier rods, S-hooks, horizontal specimen holders and holders for test panels, sample grids, flexible mist extraction tube, door seal.

Technical characteristics / specifications

• Test: Condensation test
• Effective volume / Test chamber volume: 300 l
• Net weight: approx. 40 kg
• Power supply: 230 V 1~, 50 Hz / approx. 700 VA
• Dimensions (exterior): approx. 760 x 620 x 1070 mm (W x D x H)
• Dimensions (interior): approx. 700 x 475 x 680 mm (W x D x H)
• Portable / Stationary: Stationary
• Capacity for test panels: 12 – 100 pcs. (depending on size)
• Test chamber temperature (max): 50 C
