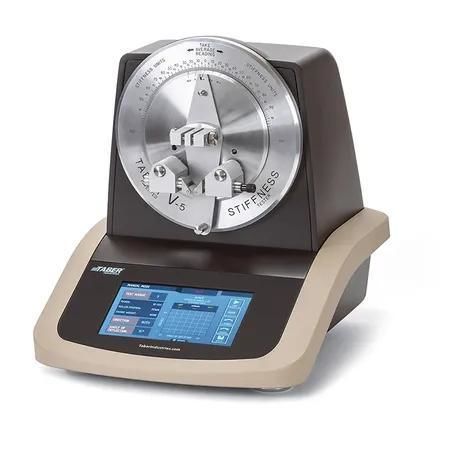

Stiffness tester TABER® STIFFNESS TESTER 362 T

bendingcablepaper and cardboard

Technical description
The Original TABER® STIFFNESS TESTER 362 T (150‑T) is the industry reference for bending stiffness testing and is cited in many standards. Developed by Taber in 1937 and continuously updated, it is designed for testing flexible sheet materials such as thin plastics, paperboard, paper, metal foils, felt, leather and similar materials.

Precise determination of the bending stiffness of a wide variety of materials
A bi‑directional pendulum weighing system measures small load increments to evaluate resistance to bending. Rollers mounted on the driving disc apply force to the lower end of the specimen; as the specimen deflects from vertical the pendulum applies increasing torque. The test reading is taken when the pendulum mark aligns with the driving disc mark (7.5° or 15°) and is read on the fixed annular disc. Readings left and right are averaged to obtain specimen stiffness; bending moment is used to calculate resistance to bending.

Recognized in international test standards
The TABER® STIFFNESS TESTER 362 T (150‑T) is suitable for methods such as Tappi T489 and ISO 2493 for most papers and paperboard. For low grammage or highly flexible papers with stiffness in the 0–10 Taber units range, Tappi T566 applies.

Test a wide range of materials
Nine distinct testing ranges permit measurement from extremely lightweight, flexible materials to very rigid materials. Each range uses a specific roller position and pendulum load adjustable with supplemental weights. Testable materials include paper, paperboard, plastics, metals, nonwovens, textiles, rubber, felt, wire and cable.

Innovative technology for precise results

• LCD operator touch screen with selectable display options
• Graphic display of test range setup
• Specimens up to 7.5 mm thick
• Nine distinct ranges with adjustable weights
• Predetermined specimen length, deflection angle and loading rate for reproducible results
• Output in Taber stiffness units (gf·cm) or millinewton·meter
• Data storage and transfer via USB drive
• Factory calibrated to ±1% of full scale

Scope of delivery

• Bendability measuring instrument Original TABER® STIFFNESS TESTER 362 T
• 3 auxiliary range weights
  • 500 range weight: scale reading x 5
  • 1000 range weight: scale reading x 10
  • 2000 range weight: scale reading x 20
• Compensator weight (range: 0–10) with case
• Jaw assembly 6 mm with ratchet stop roller
• Connecting cable
• Protective plastic cover
• Operating instructions

Technical data

• Model: TABER® STIFFNESS TESTER 362 T (150‑T)
• Intended test materials: paper, paperboard, plastics, metals, nonwovens, textiles, rubber, felt, wire, cable
• Test ranges: 9 distinct ranges (adjustable via roller position and supplemental weights)
• Specimen thickness: up to 7.5 mm
• Measurement output: Taber stiffness units (gram‑force·cm) or millinewton·meter
• Display / Interface: LCD operator touch screen
• Data: Storage and USB export
• Calibration: Factory calibrated (±1% of full scale)
• Power supply: 115 / 230 VAC, 50 / 60 Hz
• Assembly: Completely assembled, stationary
• Dimensions (H x W x D): 346.7 x 316.0 x 391.7 mm
• Order number: 03620451

Accessories (examples)

• Auxiliary Range Weights 104‑10
• Triple Cut Specimen Shear 104‑11
• High Sensitivity Attachment 150‑14
• Ratchet Stop Roller Assembly
• Various calibration specimens (types and sizes listed on page)
