Tensile testing machine UNIMAT® Basic 054

pressurecompression resistancetensile strength

Technical description

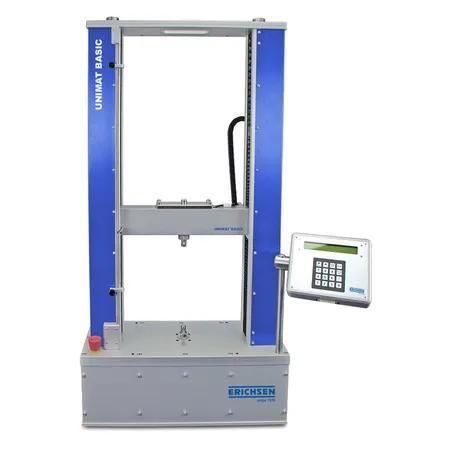

The Universal Testing Machine UNIMAT® BASIC 054 is a two‑column, two‑bellows electromechanical frame for tension and compression tests. It features a side‑mountable control panel usable as remote control (foil keyboard, 2‑line LCD for force/displacement). Configurations available to the user include:

• Test force: 10 kN; travel: 700 mm or 1200 mm; clear width: 400 / 600 / 800 mm

The machine can be operated as a stand‑alone unit or controlled via an external Windows program. Force measurement is performed with a strain‑gauge load cell; drive by DC Maxon motor and ball screw. Suitable for laboratory and production environments.

Scope of delivery

• UNIMAT® 054‑Basic / 10 kN (configured as ordered)
• Load cell (10 000 N)
• Mains cable (230 V)
• USB cable
• Software on CD
• Operating instructions
• Manufacturer's test certificate

Technical specifications (excerpt)

• Max force: 10 kN
• Motor power: 170 W (DC Maxon)
• Voltage: 220/110 V
• Travel distance: 700 / 1200 mm (depending on version)
• Clearance (working width): 400 / 600 / 800 mm
• Operating width: 400 mm (typical)
• Measured values: Force, Stress, Elongation
• Adapter size: 15.8 mm
• Speed range: 0.1 – 600 mm/min
• Measuring principle: Strain gauge (DMS)
• Effective direction: Tension / Compression
• Stiffness: approx. 0.3 mm/kN
• Weight: from approx. 80 kg (varies by configuration) — up to approx. 137 kg incl. MFE900
• Packing dimensions (H x W x D): approx. 1315–1916 x 740 x 400 mm (depending on configuration)
• Overall dimensions (H x W x D) incl. MFE900: approx. 1226–1726 x 640 x 240/750 mm
