Tensile testing machine UNIMAT® Basic 056universaltensiontension/compression
Add to favorites
Compare this product
Characteristics
- Test type
- tensile, universal, tension, tension/compression, pressure
- Operating mode
- computer-controlled, motorized
- Test material
- for materials
- Sector
- industrial, for laboratory, for research and development, for quality control
- Technology
- electric, strain gauge
- Configuration
- vertical, fixed
- Other characteristics
- precision, double-column, rugged, stainless steel, stand-alone
Description
Description

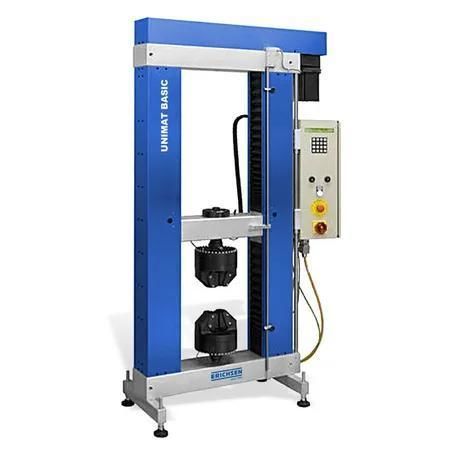

The universal testing machine UNIMAT® BASIC 056 / 20 kN is a two-column material testing system with a side-mounted control cabinet and operator panel (membrane keypad, 2-line LCD indicating force/displacement). Supplied with a 20000 N load cell. Test force: 20 kN; crosshead travel: 700 mm (20 kN - 700) / 1200 mm (20 kN - 1200); clear test space: 425 mm. The unit can operate as a stand-alone system or connected to external Windows software.
Main features
Applications
Scope of supply
Technical data
See the detailed specifications. Other capacities in the UNIMAT® BASIC series are available (3 kN, 5 kN, 10 kN, 20 kN); detailed offers available on request.
The universal testing machine UNIMAT® BASIC 056 / 20 kN is a two-column material testing system with a side-mounted control cabinet and operator panel (membrane keypad, 2-line LCD indicating force/displacement). Supplied with a 20000 N load cell. Test force: 20 kN; crosshead travel: 700 mm (20 kN - 700) / 1200 mm (20 kN - 1200); clear test space: 425 mm. The unit can operate as a stand-alone system or connected to external Windows software.
Main features
- Rated force: 20 kN
- Crosshead travel 700 mm (20 kN - 700) / 1200 mm (20 kN - 1200); test space 425 mm
- Drive: electric motor with ball screw and protective bellows
- Force measurement: strain-gauge load cell
- Frame materials: aluminium and V2A (stainless steel)
- Integrated motor and machine control, measurement and regulation in the base cabinet
Applications
- Production monitoring and incoming inspection
- Quality control in manufacturing
- Material characterization (tension, compression, bending)
- Component testing in R&D and laboratories
Scope of supply
- UNIMAT® 056-Basic / 20 kN
- Load cell (20000 N)
- Power cable (230 V)
- USB cable
- Software on CD
- User manual
- Manufacturer's test certificate
Technical data
See the detailed specifications. Other capacities in the UNIMAT® BASIC series are available (3 kN, 5 kN, 10 kN, 20 kN); detailed offers available on request.
