Vibrating feeder HVFmechanicalbulkcompact

vibrating feeder
vibrating feeder
Add to favorites
Compare this product
indicative price

Characteristics

Type
vibrating, mechanical
Product applications
bulk
Other characteristics
compact

Description

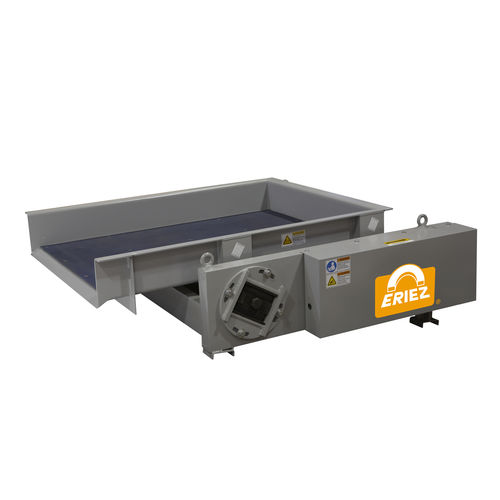

Eriez HVF mechanical feeders are straight-forward, rugged, vibrating machines that move high volumes of bulk materials reliably and economically. The feeder is a two-mass vibrating system, spring coupled, excited by a motor-driven eccentric shaft. Adjustable-angle rubber springs transmit the exciting force which can “fine tune” the motion of the trough to optimize the feed rate for a specific application. Features: Adjustable-angle polyisoprene rubber springs Low profile design requires minimum headroom Suitable for high material load applications such as below hoppers Feed rates to 60 ft/minute (18mpm) Adjustable with variable frequency drive Low horsepower requirements Heavy-duty construction for rugged applications Easily replaced standard motors The remarkably compact, design of the Model HVF feeder presents an extremely low profile requiring minimum headroom for easier installation. The ability of the specially designed polyisoprene rubber springs to amplify the trough stroke results in low horsepower requirements. Power is provided by a standard three-phase, 230/460 volt TEFC 60Hz motor. Hazardous environment motors are also available. Adjustable, variable-speed sheaves or variable frequency controls are available to provide feed rate adjustability within acceptable operating frequencies.

VIDEO
