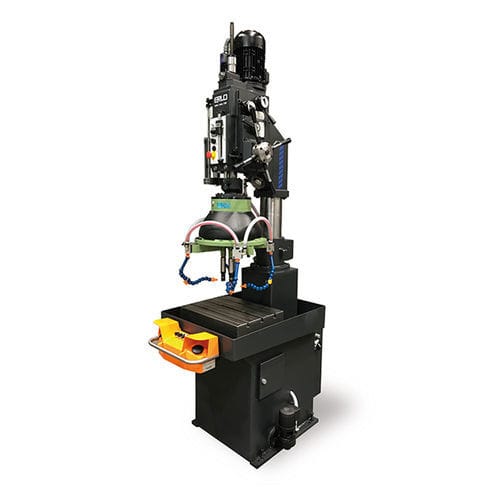

Drill press BTSA serieselectricvariable-speedwith fixed table
Add to favorites
Compare this product
Characteristics
- Type
- column type
- Power source
- electric
- Other characteristics
- variable-speed, with fixed table
- Rotational speed
Max.: 3,060 rpm
(19,226.5 rad.min-1)Min.: 65 rpm
(408.4 rad.min-1)- Drilling diameter
Max.: 40 mm
(1.57 in)Min.: 32 mm
(1.26 in)
Description
Feed mechanical automatic
Feed: 0,10-0,20-0,30
Transmission gears
Column diameter: 125 mm
Distance from spindle to column: 300 mm
520 x 390 mm fixed bench and moveable, rotating bit
Tapping capacity: M 28
Spindle cone: CM 4
Engine power: 0,95/1,5 | 1,2/2 HP
Drilling depth: 120 mm
Weight: 520 kg
Cooling equipment
Light equipment
