Bench drill S series
electricverticalwith fixed table

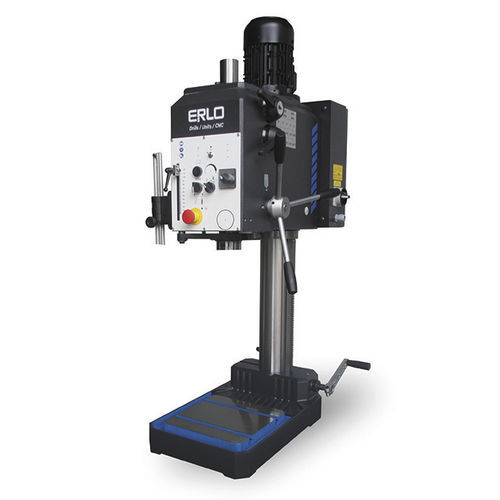

Bench drill - S series - ERLOGROUP - electric / vertical / with fixed table
Bench drill - S series - ERLOGROUP - electric / vertical / with fixed table
Add to favorites
Compare this product

Characteristics

Type
bench
Power source
electric
Other characteristics
vertical, with fixed table
Rotational speed

Max.: 4,000 rpm
(25,132.7 rad.min-1)

Min.: 245 rpm
(1,539.4 rad.min-1)

Power

Max.: 1,491 W

Min.: 507 W

Drilling diameter

18 mm, 25 mm, 30 mm
(0.71 in, 0.98 in, 1.18 in)

Description

Feed manual Transmission belts Column diameter: 100 mm Distance from spindle to column: 250 mm Fixed table, moveable and rotating bit Tapping capacity: M 14-18-25 Spindle cone: CM 3 Engine power: 0.68/1.4 | 0.95/1.8 | 1.2/2 HP Drilling depth: 120 mm Weight: 200 kg Measurements: 630x490x950 mm Cooling equipment: Opcional Light equipment

Catalogs

No catalogs are available for this product.

See all of ERLOGROUP‘s catalogs
