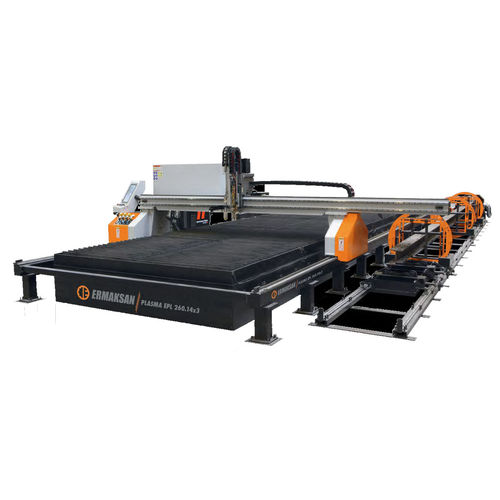

Plasma cutting machine EPL series
flameoxy-fuelfor metal

plasma cutting machine
plasma cutting machine
plasma cutting machine
plasma cutting machine
plasma cutting machine
plasma cutting machine
plasma cutting machine
Add to favorites
Compare this product


Characteristics

Technology
plasma, flame, oxy-fuel
Material
for metal
Product handled
sheet metal, tube, profile
Control type
CNC
Configuration
3-axis, 5-axis
Other characteristics
high-performance
X travel

1,500 mm, 2,000 mm, 2,500 mm, 3,000 mm, 4,000 mm
(59 in, 79 in, 98 in, 118 in, 157 in)

Y travel

3,000 mm, 4,000 mm, 6,000 mm, 12,000 mm
(118 in, 157 in, 236 in, 472 in)

Maximum cutting height

Max.: 80 mm
(3.1 in)

Min.: 5 mm
(0.2 in)

Cutting speed

35,000 mm/min
(22.966 in/s)

Operating pressure

6 bar
(87.02 psi)

Weight

Max.: 22,450 kg
(49,493.78 lb)

Min.: 4,100 kg
(9,038.95 lb)

Description

EPL 3 AXIS XPR Plasma Cutting Machine The plasma cutting machine continues to provide wide and flexible solutions with its low investment and operation cost advantages, being appropriate to production lines and automation, improved accurate cutting quality. The EPL series will be profit center of your workshop by its minimum maintenance and consumable part costs and not losing the accuracy for many long years. STANDARD EQUIPMENT • Hypertherm EDGE® Pro CNC • * 15’’ LCD Sanayi Tipi Dokunmatik Ekran • * 15’’ LCD industrial type touch screen • * Hypertherm operator panel • * Safety module input and output • * Hypernet communication system • * Remote connection interface • * Phoenix interface • * Metric and inch gauges. • HyPerformance® HPR130XD® plasma source • * Hypertherm manual gas console • * Plasma marking • Arc Glide™ THC automatic height control system • * Hypernet communication system • * Safety input-output interface module • * Nozzle sensor • * Collision sensor • * 220 mm standard stroke • * Lazer pointer • TurboNest® Cad/Cam Software • 3 Axis (X,Y,Z) • * 3 pieces Mitsubishi AC servo motor and driver • * 3 pieces planet type Neugart gear box • * High accuracy linear rails • * High accuracy an silent Atlanta Helis rack and pinion • * X,Y, Z Axis Igus brand silent cable tray • Cutting table with pneumatic system • Moving control panel system • 2 Emergency buttons • 6 Mechanical stops OPTIONAL EQUIPMENT • - Hypertherm Hydefinition Plasma Options * HPR260XD, HPR400XD, HPR800XD * Hypertherm automatic gas console • - Oxy cutting station * Messer-tanaka oxygen torch * Ermaksan automatic ignition system * IHT Automation capacitive distance and height control
