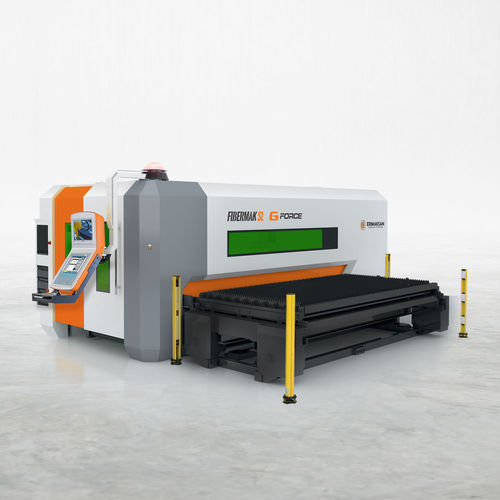

Fiber laser cutting machine FIBERMAK SL G-FORCE2D laserfor aluminumfor stainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser, 2D laser
- Material
- for aluminum, for stainless steel, for steel, for copper, for brass
- Product handled
- sheet metal
- Control type
- CNC
- Applications
- for industrial applications, for metal fabrication, for the automotive industry, for aeronautical applications, for processing industry, for shipyards
- Workpiece loading
- automated loading/unloading
- Configuration
- 4-axis
- Other characteristics
- high-precision, high-speed, CE, with servo-motor, for steel construction, ISO, with conveyor, for structural steel, flying optic
- X travel
2,550 mm, 3,050 mm, 4,050 mm, 6,200 mm, 8,300 mm
(100 in, 120 in, 159 in, 244 in, 327 in)- Y travel
1,270 mm, 1,550 mm, 2,050 mm, 2,700 mm
(50 in, 61 in, 81 in, 106 in)- Z travel
150 mm
(6 in)- Maximum cutting height
Max.: 25 mm
(1 in)Min.: 5 mm
(0.2 in)- Cutting speed
141,000 mm/min
(92.52 in/s)- Laser power
Max.: 10,000 W
Min.: 500 W
- Repeatability
0.015 mm
(0.0006 in)- Overall length
5,200 mm, 5,700 mm, 6,800 mm, 9,000 mm, 11,500 mm
(205 in, 224 in, 268 in, 354 in, 453 in)- Overall width
4,200 mm, 4,700 mm, 5,760 mm, 6,860 mm
(165 in, 185 in, 227 in, 270 in)- Height
2,610 mm
(103 in)
Description
We hereby present Fibermak Momentum Gen-3 with its re-newed design, dynamic lines, high productivity, perfect cut quality, ergonomic details thought for your needs and high cutting speed capacity.
STANDARD EQUIPMENT
• 4 Axis (X, Y, U, Z)
• Servo Motor
• Auto - focus cutting head
• Laser Source
• Chiller Unit
• Clean-dry air system
• Safety Cabinet
• Automatic-Dual Shuttle Table
• CAD/CAM Software
• 15’’ Touchscreen Controller
• Conveyor
• Warning Lamp
• Nozzle Set
OPTIONAL EQUIPMENT
• Linear motor technology
• 0.5 kW, 1 kW, 2 kW, 3 kW, 4 kW and 6 kW laser source options
• Extraction unit.
• Light protection barrier
• Pneumatic sheet support system for easy sliding
• Air conditioner for automation panel
• Metalix, Almacam etc. CAD/CAM software
• Nozzle changer
• LCM (laser cut monitor) sensor for piercing control and cut-loss control
• Automatic sheet loading system
• Momentum Gen-3 G Force
• Full Automatic sheet loading – unloading system (TOWER)
