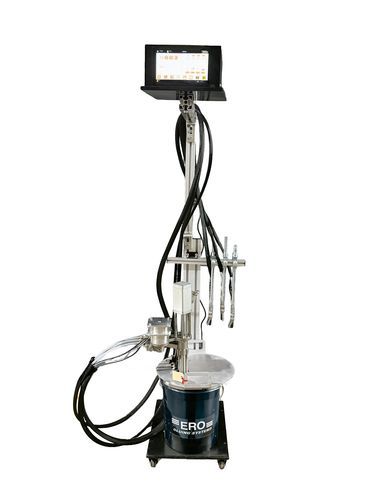

Electromagnetic glue dispensing machine ERO-S

with inspection systemwith touchscreen

Product Overview
The ERO-S medium-pressure gluing system preserves the core features of ERO technology. Designed for applications with moderate performance requirements, it provides dot-distribution, non-contact glue application suitable for folder-gluers and similar equipment.

Includes

• 4-channel control panel with integrated touch display, driver box and software
• Double-acting single-piston pump, 3:1 ratio, mounted directly on the glue bucket
• Electromagnetic glue applicator type GTE-13/S
• Low glue level detection system inside the bucket (includes alarm)
• Encoder with support and pulley; sensor included
• Glue filter and glue air hoses
• Pump support fitted with sliding device and cover

Key benefits

• Advanced ERO technology adapted for moderate performance requirements
• Low maintenance and straightforward handling
• Reliable operation at elevated speeds
• Dot distribution for glue savings
• Non-contact application to reduce material waste

Performance
Maximum speed of production:
Over 350 m/min.

Technical specifications

• System type: Medium-pressure gluing system
• Control: 4-channel control panel with integrated touch display, driver box and software
• Pump: Double-acting single-piston, 3:1 ratio, mounted directly on glue bucket
• Applicator: Electromagnetic glue applicator (type GTE-13/S)
• Glue handling: Low glue level detection inside bucket with alarm; glue filter; glue air hoses
• Positioning & sensing: Encoder with support and pulley; sensor included
• Mechanical: Pump support fitted with sliding device and cover
• Application: Dot distribution; non-contact application for glue savings
• Maximum production speed: Over 350 m/min.
