Controller for adhesive application systems Programmatore

Overview
The ERO® glue controller is designed to manage and synchronize glue applicators and quality sensors on folding carton and corrugated packaging lines. It supports pneumatic (contact) and electromagnetic (non-contact) applicators, hot-melt guns and cold-glue valves, including mixed installations on the same machine.

Main features

• Modular system: up to 3 programmer modules, each with 8 channels
• Up to 8 glue patterns configurable per applicator
• Expandable motherboard for additional functions
• Industrial-grade interface engineered for straightforward setup and operation

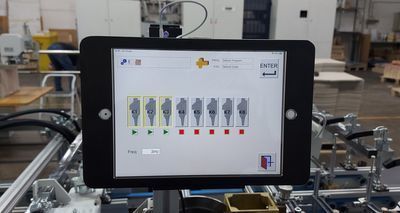

iPad
The iPad interface replaces traditional control panels, enabling remote supervision and independent operation. The iPad is mounted on a movable arm and supplied with a dedicated charger.

Touchscreen
The intuitive touchscreen simplifies pattern programming and setup adjustments.

Keyboard
The keyboard controller provides an alternative local control interface and monitors ERO® sensors for system status and diagnostics.

Compatibility and functions
Supports pneumatic (contact) and electromagnetic (non-contact) applicators, hot-melt and cold-glue systems; allows control of multiple applicators and combined systems on the same machine; integrates with cameras and ERO® quality sensors for process monitoring.

Demo video available
Video: ERO iPad for Total Control of Folding Carton Applications

Technical specifications

• Up to 3 programmer modules × 8 channels
• Up to 8 glue patterns per applicator
• Expandable motherboard
• iPad touchscreen mounted on movable arm with dedicated charger
• Keyboard controller for ERO® sensor monitoring
• Support for pneumatic, electromagnetic, hot-melt and cold-glue applicators
