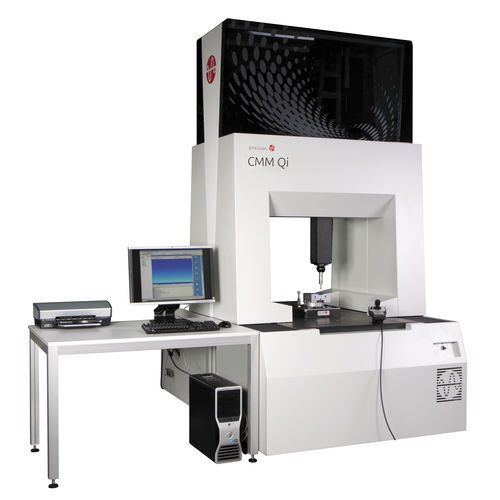

Bridge coordinate measuring machine CMM Qi

production linemulti-sensormechanical

Quality measurement of the highest precision The EROWA CMM Qi portal measuring machine provides the highest mechanical accuracy for the efficient completion of any presetting jobs, as well as quality measurements. The measuring machine has been prepared for automatic loading and can therefore be integrated into automatic production without any problems. The very best material Only choice components were used for the construction of the measuring machine. The solid granite table and the specially cast portal constitute the basis for the precision of the measuring portal and the selected tooling systems. Mechanical quality The stable axes are moved on high-precision rails with air bearings. In combination with the centrally arranged drives, mechanical accuracy is quite remarkable even with fluctuating temperatures. Prepared for EROWA tooling systems Thanks to the standard hole pattern, one or more EROWA tooling systems can be directly fitted to the granite table, depending on requirements. EROWA FrameSet, MTS, UPC or ITS – all the variants are supported. Renishaw probe systems The high-precision Renishaw measuring probe systems provide the highest degree of flexibility. Software An extensive software package for presetting, quality measurement and automation supplies a suitable measuring program for every application. Automated quality measuring The measuring machine has been prepared for automatic loading and can therefore be integrated into automatic production without any problems. With a suitable EROWA robot and the manufacturing control system, we provide you with the overall solution from one single source.
