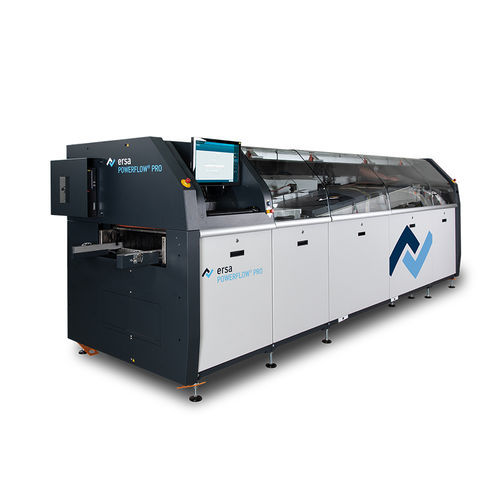

Wave soldering machine POWERFLOW PRO

modularflexiblecompact

Compact full tunnel wave soldering system for cost-optimized wave soldering Modular, flexible and individually expandable preheating concept variably configurable in length and power Award-winning database-based operating software ERSASOFT 5 > Ready for Industry 4.0 Finger and frame transport with different working widthsn Dimensions Length: 4,450 mm Width: approx. 1,400 mm Height: approx. 1,600 mm Conveyor systems Finger conveyor, pallet conveyor Max. conveyor speed 3 m/min Max. working width 458 mm Max. height of components, top of board: up to 100 mm Preheating / Solder module Preheating: Heat transfer by convection, medium wave radiation and short wave radiation Individually configurable up to a preheat length of 2,000 mm Solder module: Depending on configuration 525 to 725 kg Solder content
